Problem: $($of $13)$

Do not round intermedider answers. Give your final answer$($s$)$ to three decimal places. Check your units.

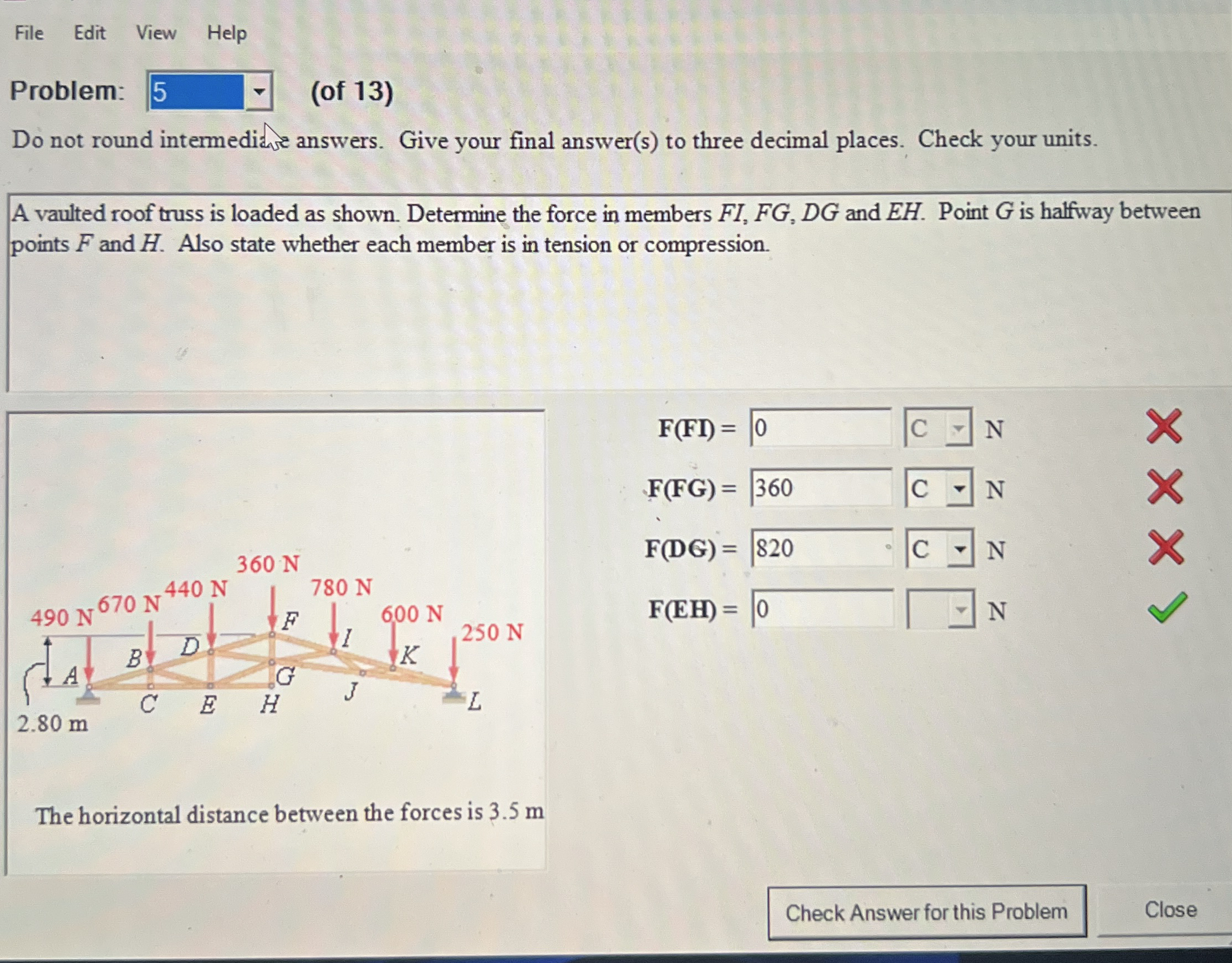

A vaulted roof truss is loaded as shown. Determine the force in members $FI,FG,DG$ and $EH.$ Point $G$ is halfway between points $F$ and $H.$ Also state whether each member is in tension or compression.

$q,$

$F(FI)=$

$N$

$F(FG)=$

$C$

$N$

$F(DG)=,CN$

$C$

$N$

$F(EH)=N$

$N$

$N$

$N$

The horizontal distance between the forces is $3\mathrm{.}5$ m
