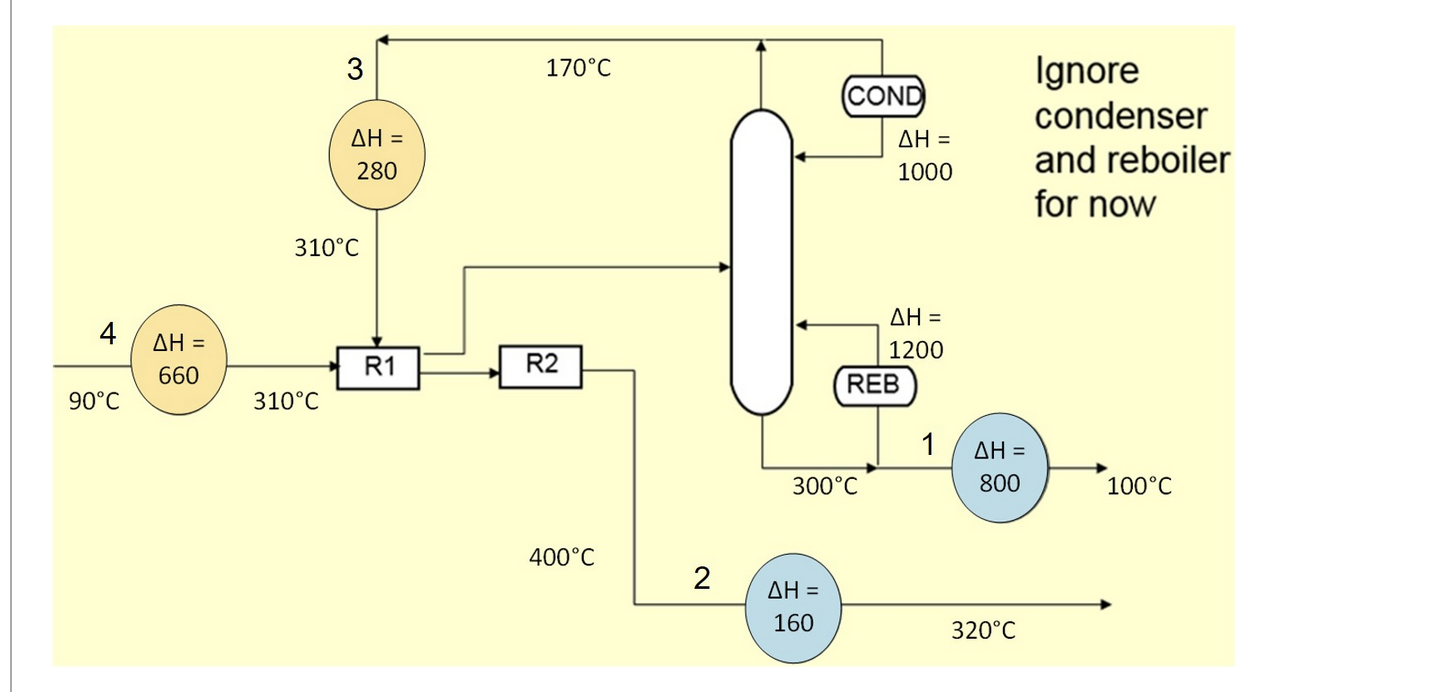

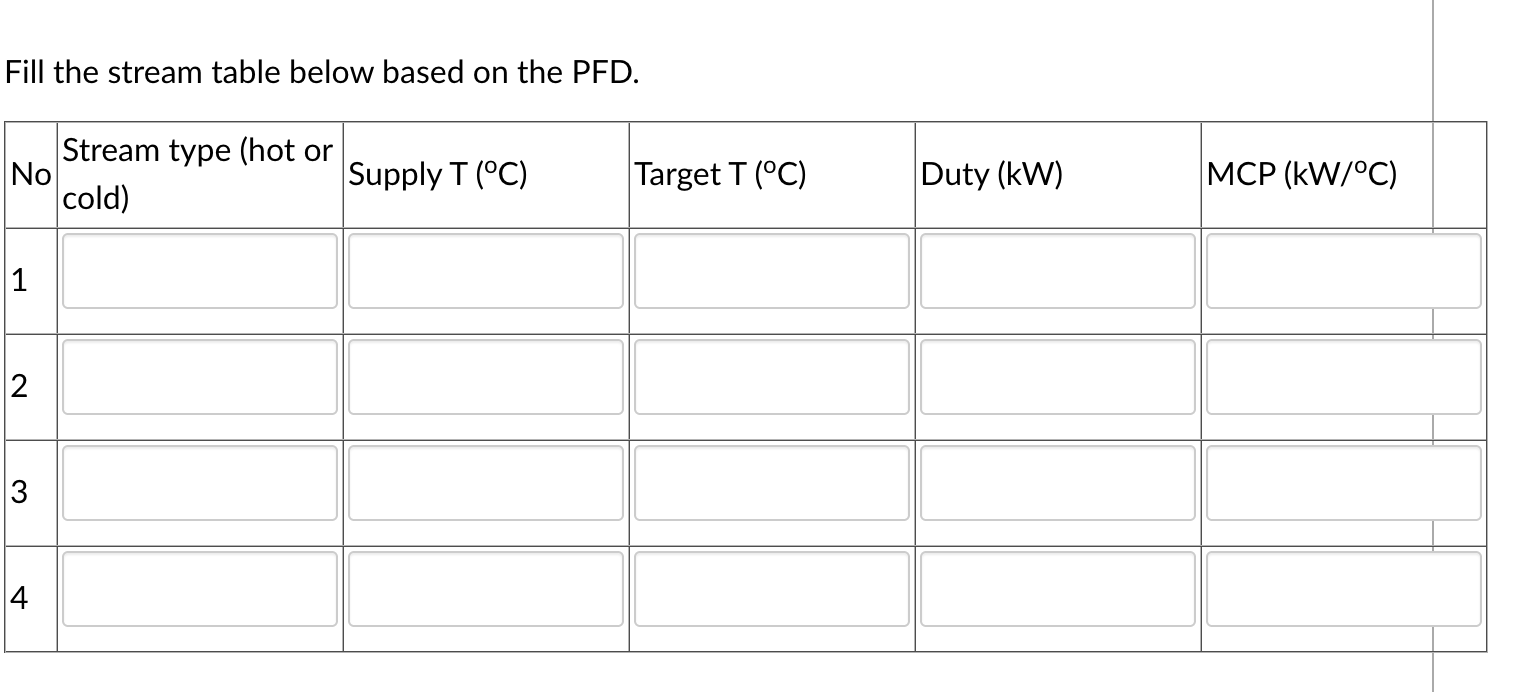

Question: Fill the stream table below based on the PFD. For the four streams (no condenser and reboiler), solve the pinch temperatures and the minimum cooling

minimum cooling and heating utilities when Tmin=10C. You may use the cascade

table method or PinchExcel software. In any case, state the method that

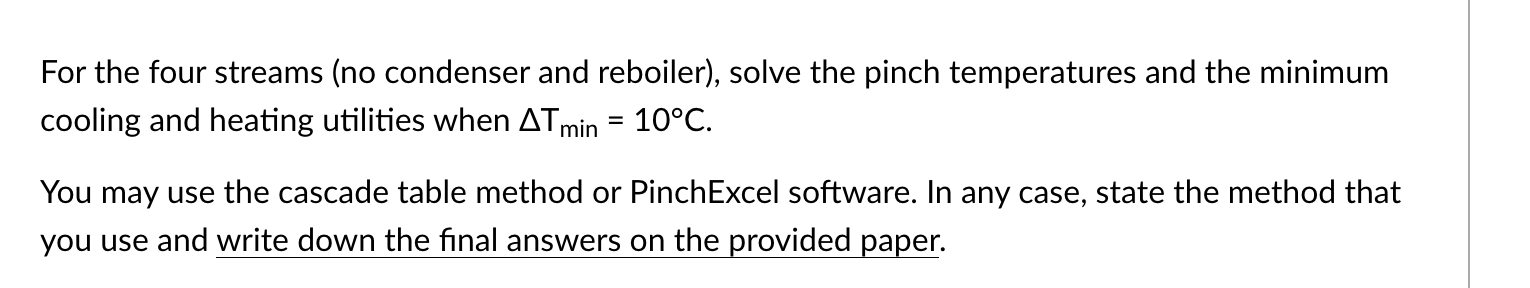

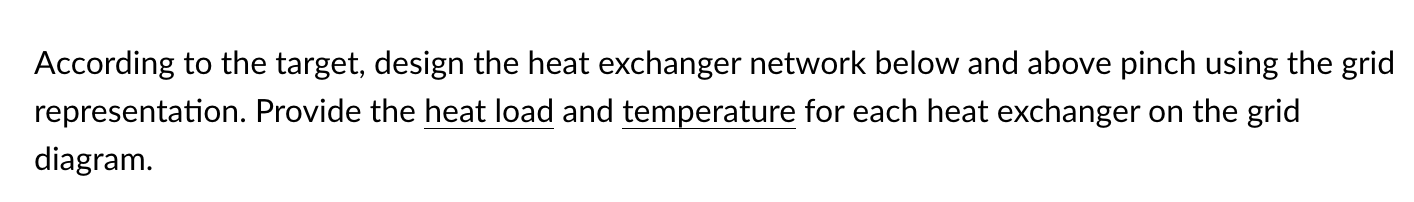

Fill the stream table below based on the PFD. For the four streams (no condenser and reboiler), solve the pinch temperatures and the minimum cooling and heating utilities when Tmin=10C. You may use the cascade table method or PinchExcel software. In any case, state the method that you use and write down the final answers on the provided paper. According to the target, design the heat exchanger network below and above pinch using the grid representation. Provide the heat load and temperature for each heat exchanger on the grid diagram

Step by Step Solution

There are 3 Steps involved in it
