FINAL ANSWER

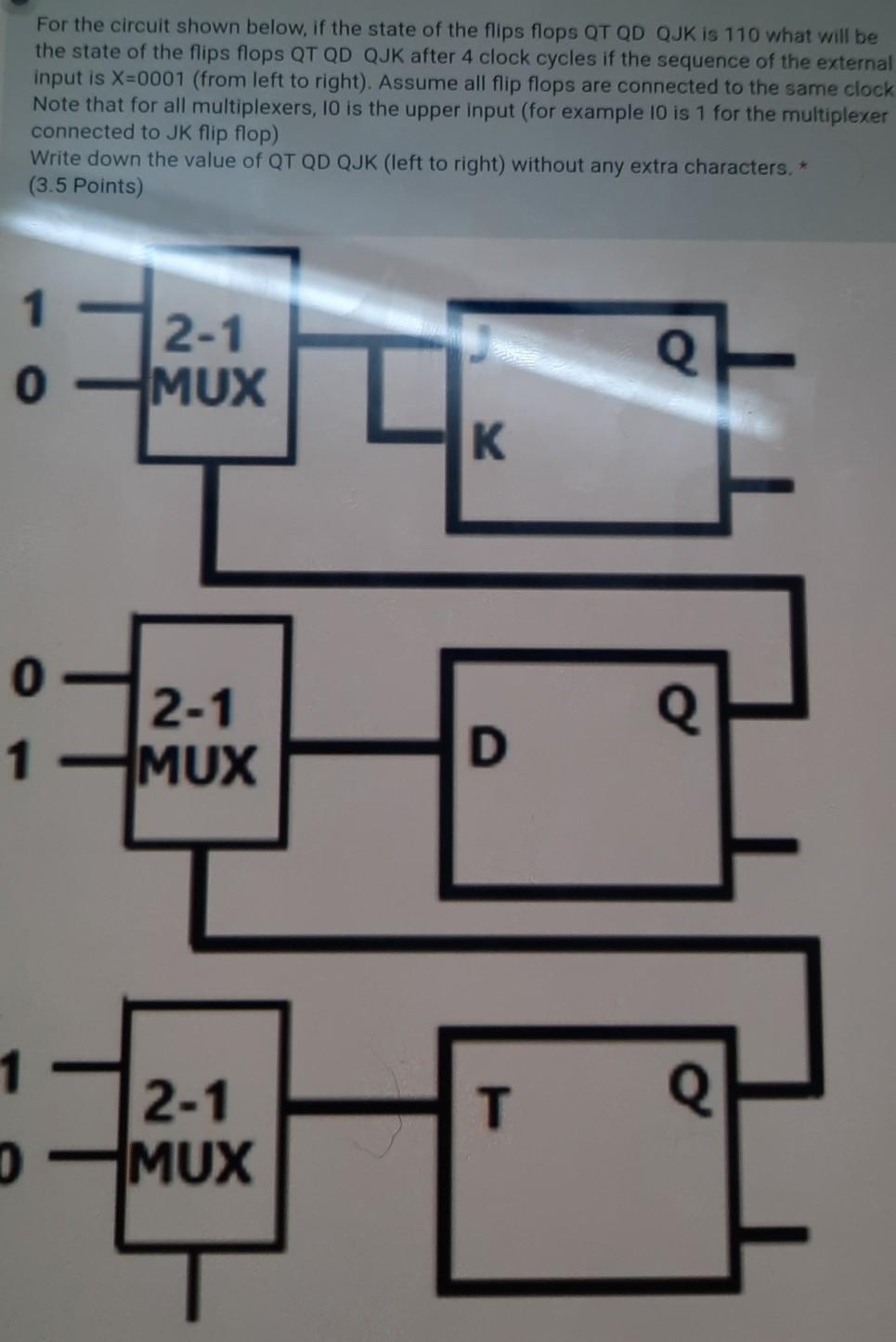

For the circuit shown below, if the state of the flips flops QT QD QJK is 110 what will be the state of the flips flops QT QD QJK after 4 clock cycles if the sequence of the external input is X=0001 (from left to right). Assume all flip flops are connected to the same clock Note that for all multiplexers, 10 is the upper input (for example 10 is 1 for the multiplexer connected to JK flip flop) Write down the value of QT QD QJK (left to right) without any extra characters. * (3.5 Points) 1 2-1 MUX 0 K 2-1 MUX 1 D 2-1 MUX T
