Final Estimating Project

You are employed by a contactor that is replying to a tender for a small garage project in a small township in Northern Ontario. Your assignment is to compete an estimate of the all elements of the project required to excavate, construct, and finish the interior and exterior of the project.

Instructions:

1. Using the spreadsheet

Complete a quantity survey for the single garage project for the elements found in the spreadsheet workbook tabs.

2. There are a set of plans for the project, which can also be found in the final assignment tap. Any project details (specifications) that are required I have attached to this instruction. Should there be any details that have been left out and that you are required to assume, clearly mark the assumptions you made on the spreadsheet.

3. This assignment is presented in imperial units and your quantity survey and estimate will be in imperial units.

4. We will not worry about the labour cost on this project. Just the total cost of materials.

5. If any important information you require is not here, assume and clearly let me know on you QTO and Summary your assumptions.

Notes:

1. Excavation: The lot is cleared and ready for excavation. The top soil removal is: Depth: 6 inches, area 40 feet by 30 feet. Top soil will remain on site and the remainder of the excavated materials are to be hauled off site by a subcontractor at 20 yd3 loads at $240.00 per load. You are required to estimate the total cost of backfilling the foundation with sand at $350.00 per load. We use the same subcontractor.

2. Concrete Work: You will have to estimate the cost of material for the forms. Cost of materials is $95 per SCMA (yd2). Concrete will be estimated at $175.00 per yd3. Assume no rebar nor wire mesh.

3. Rough Carpentry: Estimate the total cost of materials for this project. Look up prices for materials from Home Depot website. If you can't find a price, make an educated guess, clearly mark your guess.

4. Exterior and Interior Finishes: Estimate the total cost of materials for this project. Look up the prices on the Home Depot website. If you can't find a price, make an educated guess, clearly mark your guess.

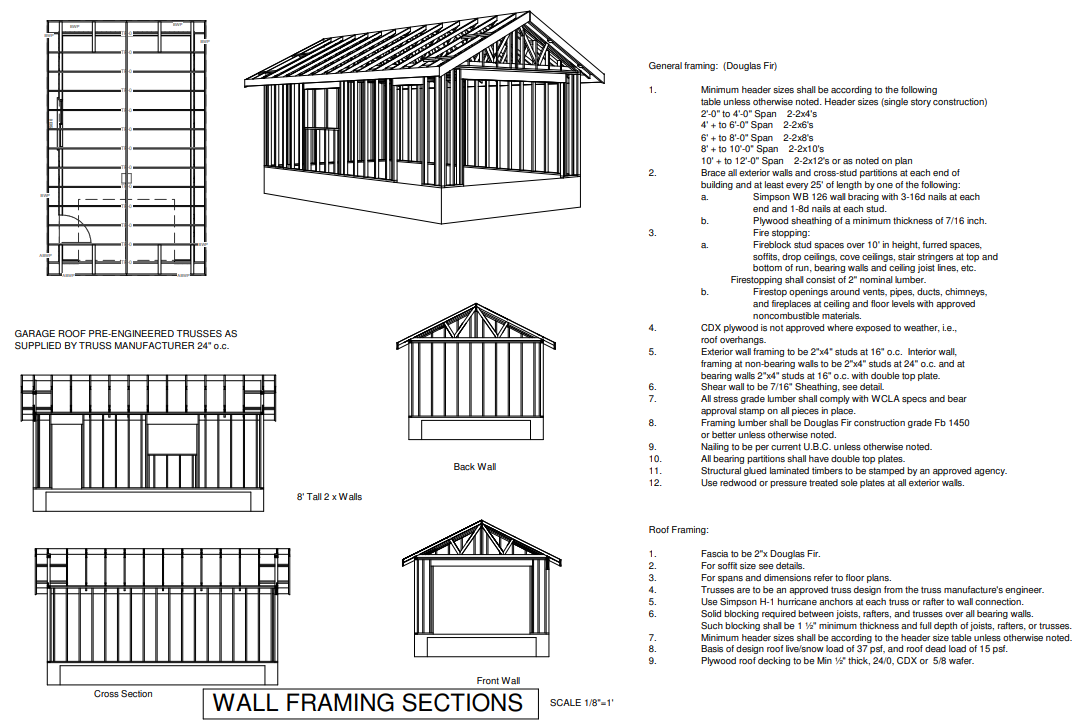

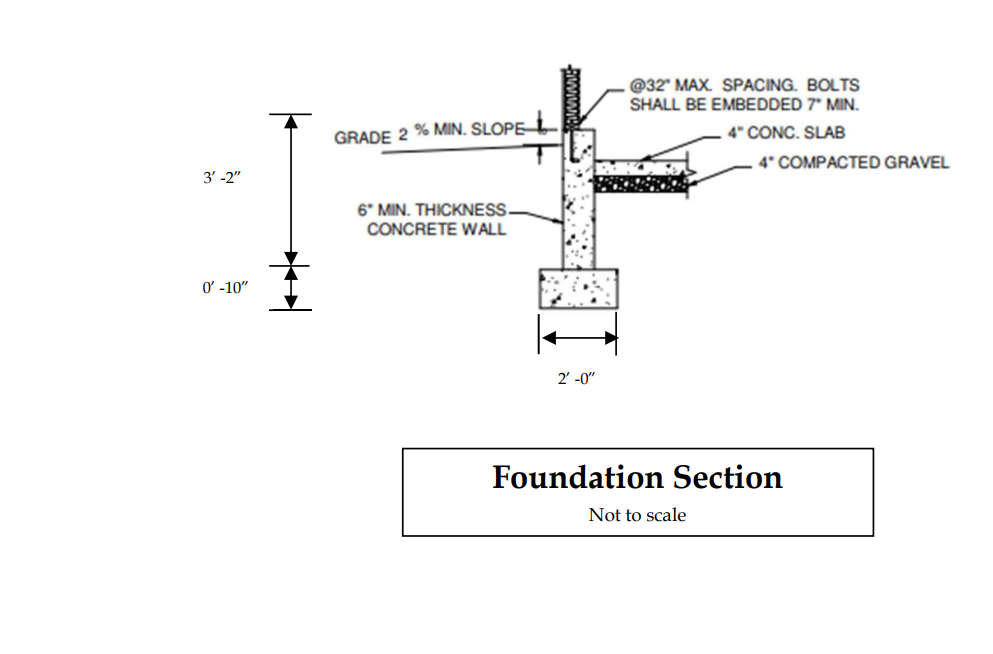

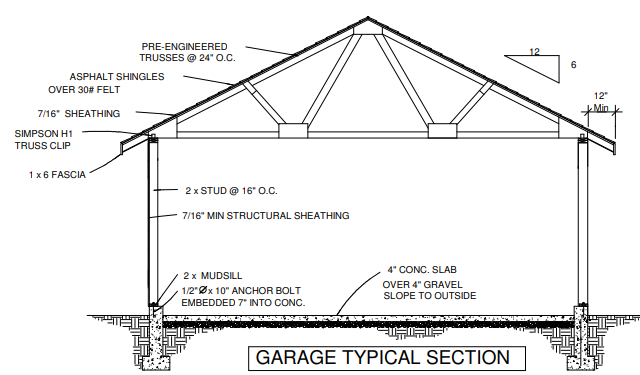

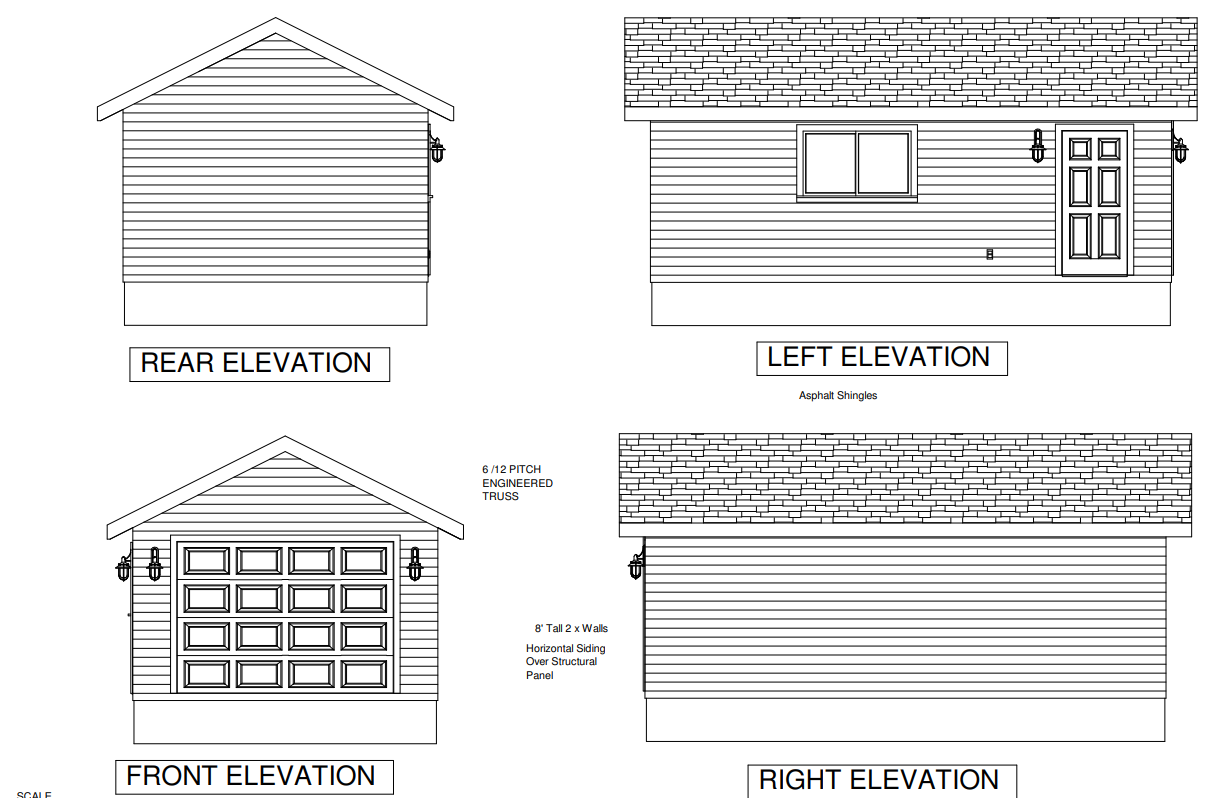

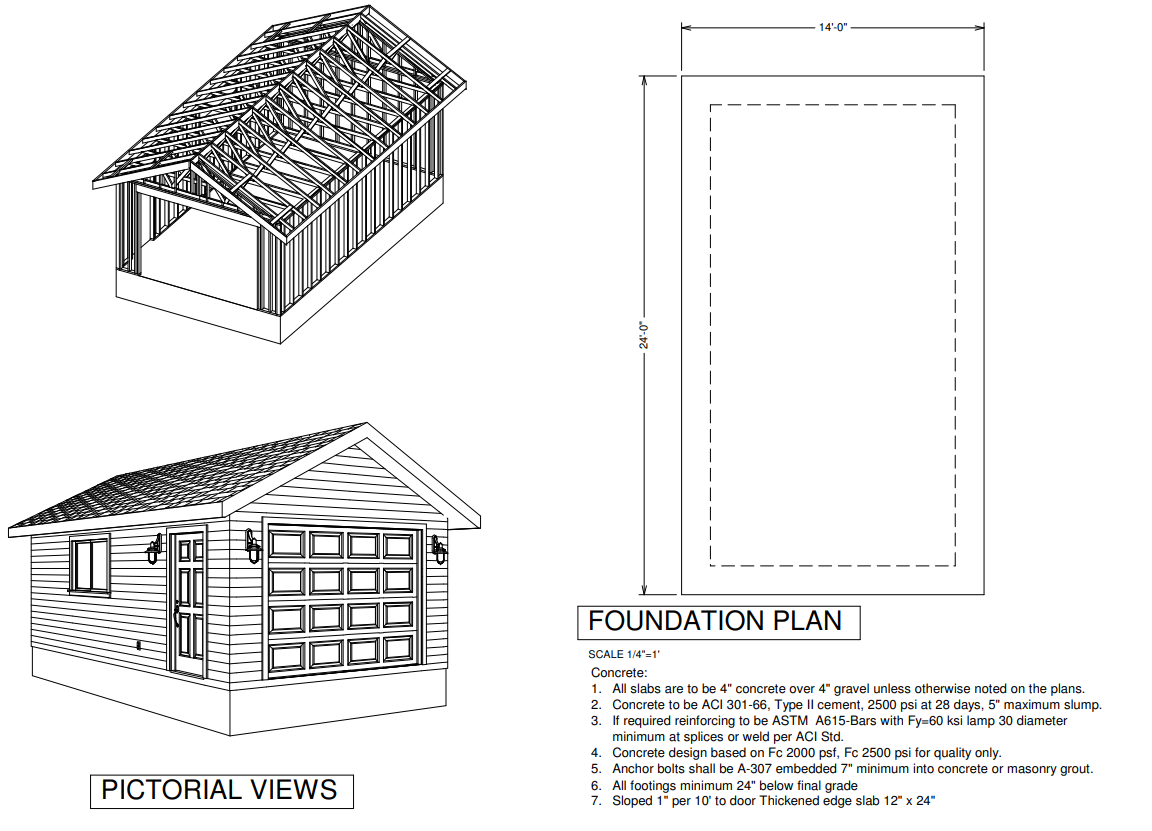

REAR ELEVATION LEFT ELEVATION Asphalt Shingles 6/12 PITCH ENGINEERED TRUSS 8' Tall 2 x Walls Horizontal Siding Over Structural Panel FRONT ELEVATION RIGHT ELEVATION- 14'-0" 24'-0' FOUNDATION PLAN SCALE 1/4"=1' Concrete: 1. All slabs are to be 4" concrete over 4" gravel unless otherwise noted on the plans. 2. Concrete to be ACI 301-66, Type II cement, 2500 psi at 28 days, 5" maximum slump. 3. If required reinforcing to be ASTM A615-Bars with Fy=60 ksi lamp 30 diameter minimum at splices or weld per ACI Std. 4. Concrete design based on Fc 2000 psf, Fc 2500 psi for quality only. 5. Anchor bolts shall be A-307 embedded 7" minimum into concrete or masonry grout. PICTORIAL VIEWS 6. All footings minimum 24" below final grade 7. Sloped 1" per 10' to door Thickened edge slab 12" x 24"General framing: (Douglas Fir) 1. Minimum header sizes shall be according to the following table unless otherwise noted. Header sizes (single story construction) 2'-0" to 4'-0" Span 2-2x4's 4' + to 6'-0" Span 2-2x6's 6' + to 8'-0" Span 2-2x8's B' + to 10'-0" Span 2-2x10's 10' + to 12'-0" Span 2-2x12's or as noted on plan 2 Brace all exterior walls and cross-stud partitions at each end of building and at least every 25' of length by one of the following: a. Simpson WB 126 wall bracing with 3-16d nails at each end and 1-8d nails at each stud. Plywood sheathing of a minimum thickness of 7/16 inch. 3 Fire stopping: Fireblock stud spaces over 10' in height, furred spaces, soffits, drop ceilings, cove ceilings, stair stringers at top and bottom of run, bearing walls and ceiling joist lines, etc. Firestopping shall consist of 2" nominal lumber. b. Firestop openings around vents, pipes, ducts, chimneys, and fireplaces at ceiling and floor levels with approved noncombustible materials. GARAGE ROOF PRE-ENGINEERED TRUSSES AS COX plywood is not approved where exposed to weather, i.e., SUPPLIED BY TRUSS MANUFACTURER 24" o.C. roof overhangs. Exterior wall framing to be 2"x4" studs at 16" o.c. Interior wall, framing at non-bearing walls to be 2"x4" studs at 24" o.c. and at bearing walls 2"x4" studs at 16" o.c. with double top plate Shear wall to be 7/16" Sheathing, see detail All stress grade lumber shall comply with WCLA specs and bear approval stamp on all pieces in place. 8. Framing lumber shall be Douglas Fir construction grade Fb 1450 or better unless otherwise noted. 9. Nailing to be per current U.B.C. unless otherwise noted. 10 . All bearing partitions shall have double top plates. Back Wall 11 . Structural glued laminated timbers to be stamped by an approved agency- 12 Use redwood or pressure treated sole plates at all exterior walls. B' Tall 2 x Walls Roof Framing: Fascia to be 2"x Douglas Fir. For soffit size see details. For spans and dimensions refer to floor plans. Trusses are to be an approved truss design from the truss manufacture's engineer. Use Simpson H-1 hurricane anchors at each truss or rafter to wall connection. 6. Solid blocking required between joists, rafters, and trusses over all bearing walls. Such blocking shall be 1 12" minimum thickness and full depth of joists, rafters, or trusses. 7. Minimum header sizes shall be according to the header size table unless otherwise noted. Basis of design roof live snow load of 37 pst, and roof dead load of 15 psf. Plywood roof decking to be Min 1/2" thick, 24/0, CDX or 5/B wafer. Front Wall Cross Section WALL FRAMING SECTIONS SCALE 1/8"=1'PRE-ENGINEERED TRUSSES @ 24" O.C. 12 ASPHALT SHINGLES OVER 30# FELT 12" 7/16' SHEATHING *Min * SIMPSON H1 TRUSS CLIP 1 x 6 FASCIA 2 x STUD @ 16' O.C. 7/16" MIN STRUCTURAL SHEATHING 2 x MUDSILL 4" CONC. SLAB 1/2 2 x 10" ANCHOR BOLT OVER 4" GRAVEL SLOPE TO OUTSIDE EMBEDDED 7" INTO CONC. GARAGE TYPICAL SECTION@32" MAX. SPACING. BOLTS TAMMIME SHALL BE EMBEDDED 7" MIN. GRADE 2 % MIN. SLOPE 4" CONC. SLAB 4" COMPACTED GRAVEL 3' -2" 6" MIN. THICKNESS CONCRETE WALL 0' -10" 2' -0" Foundation Section Not to scale
