Question: Find the branch currents i a? i e for the circuitshown in the figure.(Figure 1). A) Find the value of i a. B) Find the

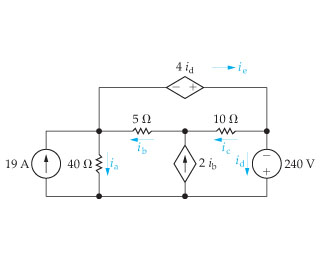

Find the branch currents ia?ie for the circuitshown in the figure.(Figure 1).

A) Find the value of ia.

B) Find the value of ib.

C) Find the value of ic.

D) Find the value of id.

E) Find the value of ie.

F) Check your answers by showing that the total power generated equals the total power dissipated. First, find the total power generated and then find total power dissipated.

19 A( 4 ) 40 5 w Aid 12 1 10 |240

19 A( 4 ) 40 5 w Aid 12 1 10 |240 V

Step by Step Solution

★★★★★

3.37 Rating (150 Votes )

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock

19A assume By To prove observation 19 V1 V V 40 5 V 0 Apply KCL at node 2 V V 5 3 nodes 1A with node ... View full answer
