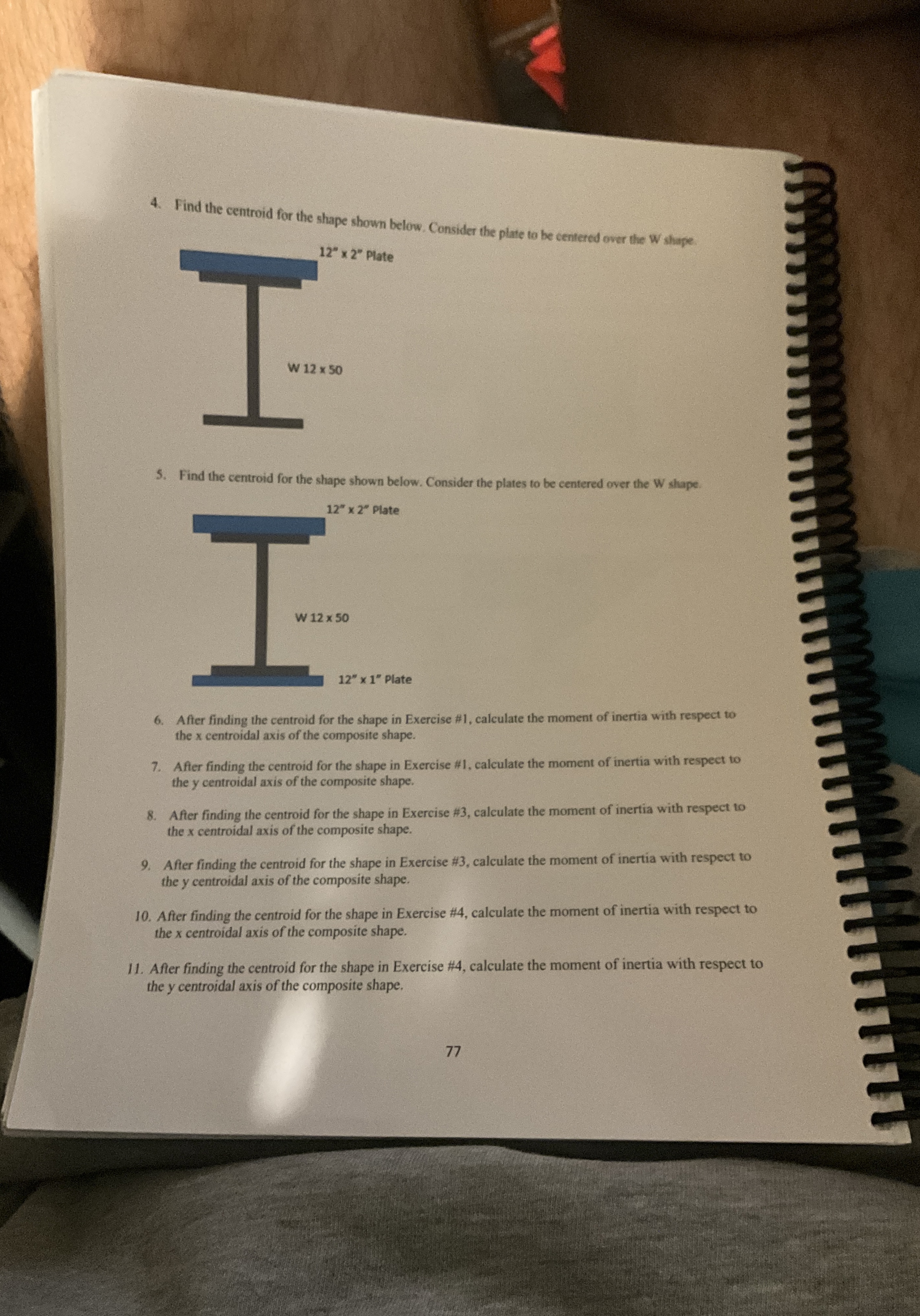

Question: Find the centroid for the shape shown below. Consider the plate to be centered over the W shupe Find the centroid for the shape shown

Find the centroid for the shape shown below. Consider the plate to be centered over the W shupe
Find the centroid for the shape shown below. Consider the plates to be centered over the W sthape.
After finding the centroid for the shape in Exercise #1, calculate the moment of inertia with respect to the x centroidal axis of the composite shape.
After finding the centroid for the shape in Exercise #1, calculate the moment of inertia with respect to the y centroidal axis of the composite shape.
After finding the centroid for the shape in Exercise #3, calculate the moment of inertia with respect to the x centroidal axis of the composite shape.
After finding the centroid for the shape in Exercise #3, calculate the moment of inertia with respect to the y centroidal axis of the composite shape.
After finding the centroid for the shape in Exercise #4, calculate the moment of inertia with respect to the x centroidal axis of the composite shape.
After finding the centroid for the shape in Exercise #4, calculate the moment of inertia with respect to the y centroidal axis of the composite shape.
77
Find the centroid for the shape shown below.

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
