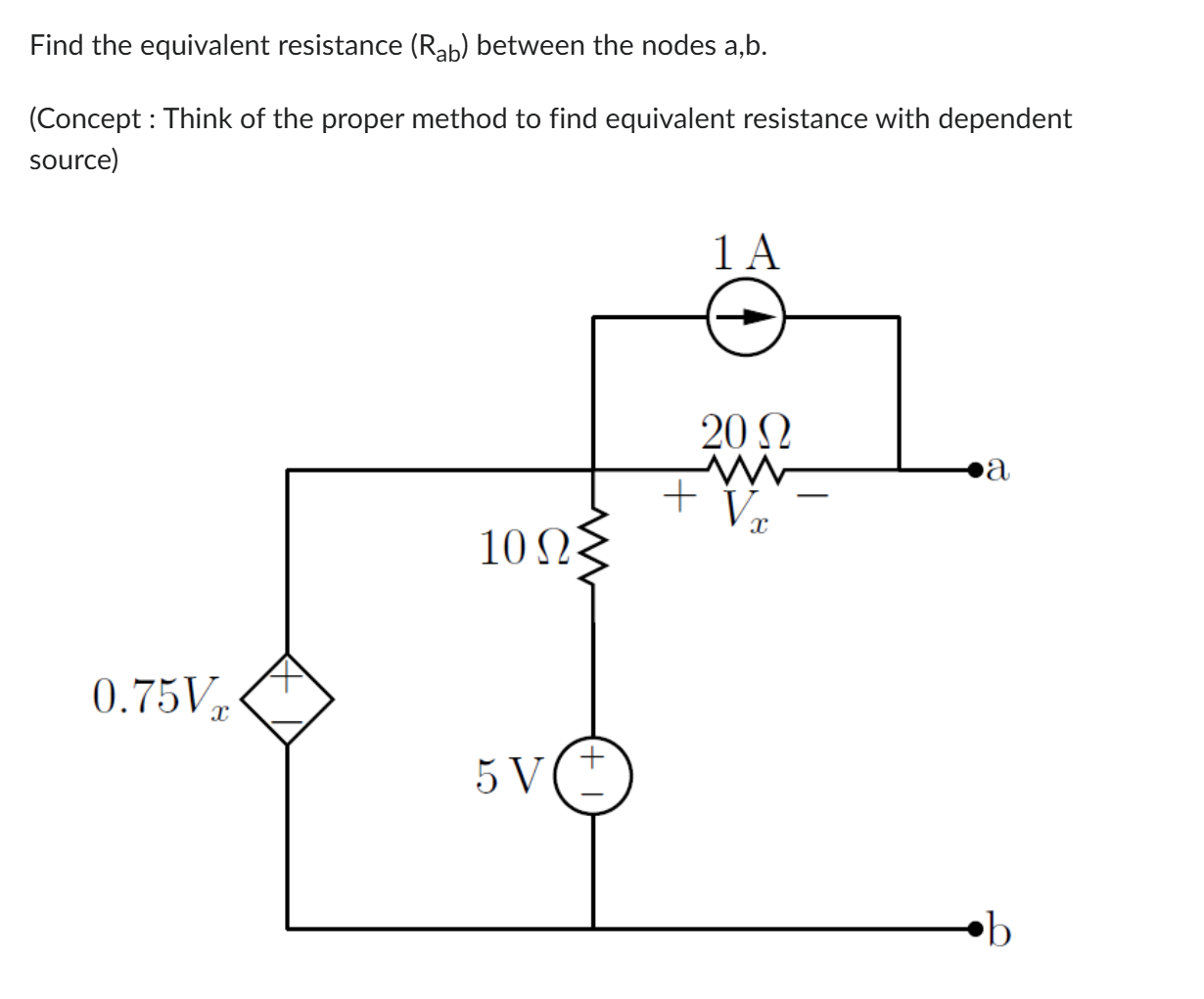

Question: Find the equivalent resistance ( R a b ) between the nodes a , b . ( Concept : Think of the proper method to

Find the equivalent resistance (Rab) between the nodes a,b.
(Concept : Think of the proper method to find equivalent resistance with dependent source)
Find the equivalent resistance ( R a b ) between

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
