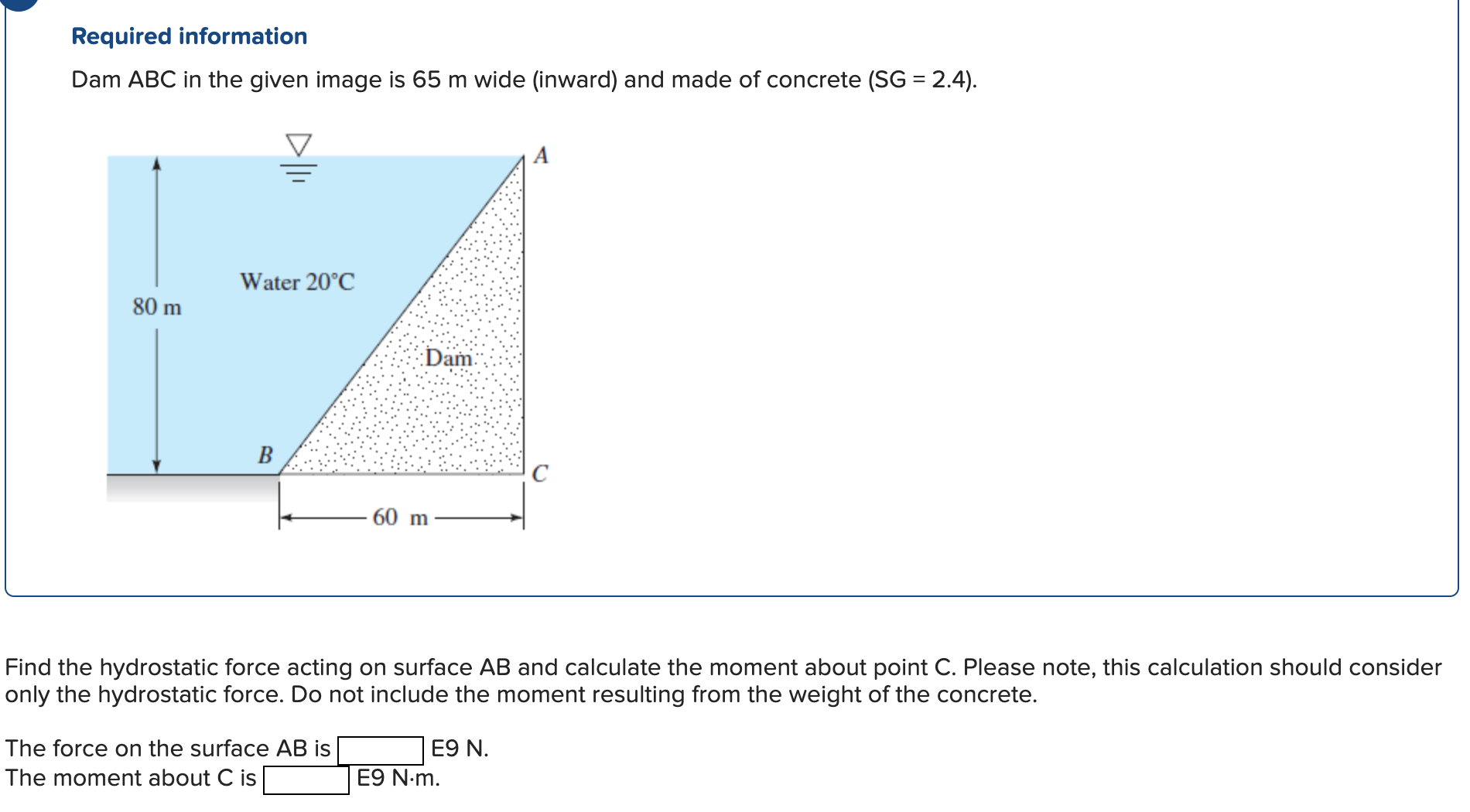

Question: Find the hydrostatic force acting on surface A B and calculate the moment about point C . Please note, this calculation should consider only the

Find the hydrostatic force acting on surface AB and calculate the moment about point C . Please note, this calculation should consider
only the hydrostatic force. Do not include the moment resulting from the weight of the concrete.
The force on the surface AB is
E9 N.
The moment about C is
Find the hydrostatic force acting on surface A B

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
