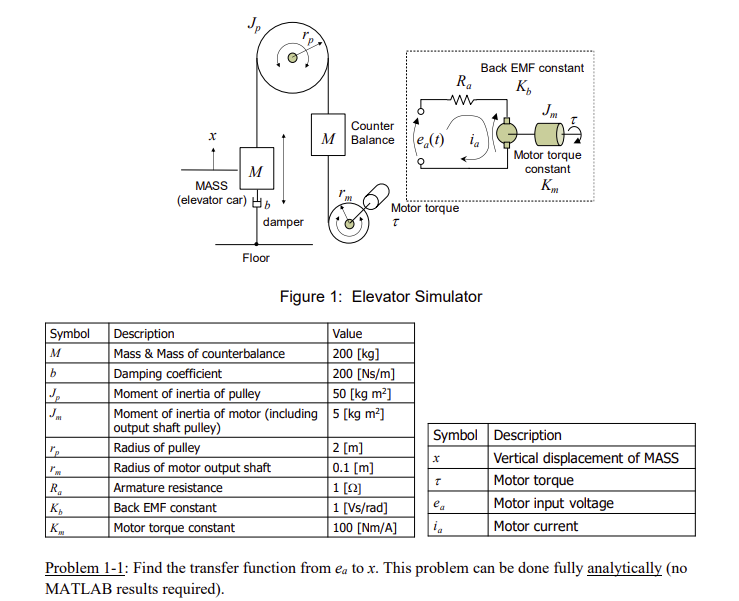

Question: Find the transfer function from e _ ( a ) to x . This problem can be done fully analytically ( no MATLAB results required

Find the transfer function from e_(a) to x. This problem can be done fully analytically (no MATLAB results required). Assume that the mass moves only in the vertical direction, and that armature inductance and friction are negligible.
Find the transfer function from e _ ( a ) to x .

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
