Question: Find the transfer function, G ( s ) = 1 s T ( s ) , for the rotational mechanical system. the answer for this

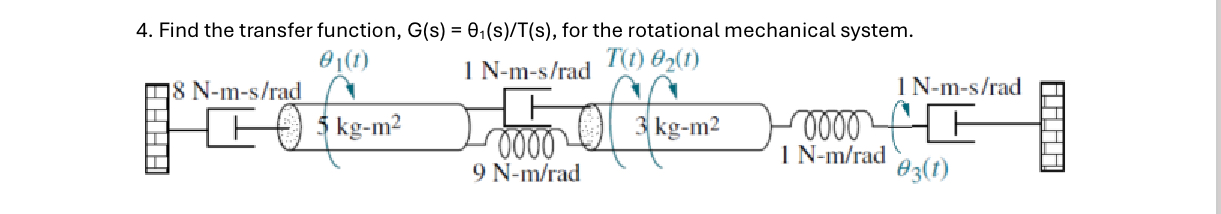

Find the transfer function, G(s)=1sT(s), for the rotational mechanical system.
the answer for this is Theta1/T =(s^2+10s+9)/(15s^5+47s^4+117s^3+161s+81s). give me the solution
Find the transfer function, G ( s ) = 1 s T ( s )

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
