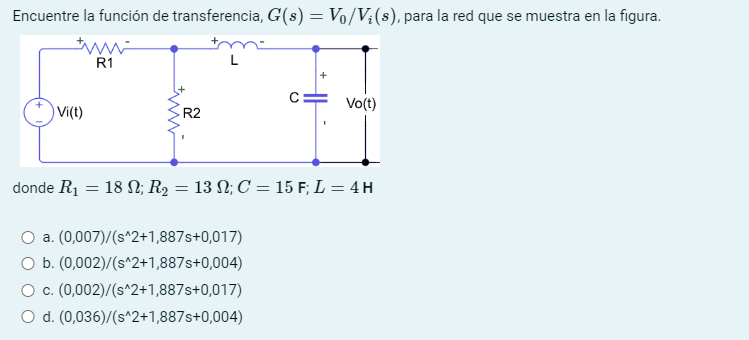

Question: Find the transfer function, G ( s ) = V 0 V i ( s ) , for the network shown in the figure,select the

Find the transfer function, G(s)=V0Vi(s), for the network shown in the figure,select the correct answer.
where R1=18;R2=13;C=15F;L=4H
a.0,007s2+1,887s+0,017
b.0,002s2+1,887s+0,004
c.0,002s2+1,887s+0,017
d.0,036s2+1,887s+0,004
Find the transfer function, G ( s ) = V 0 V i ( s

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
