Question: . Find the transfer function T ( s ) = C ( s ) / R ( s ) for the diagram below using block

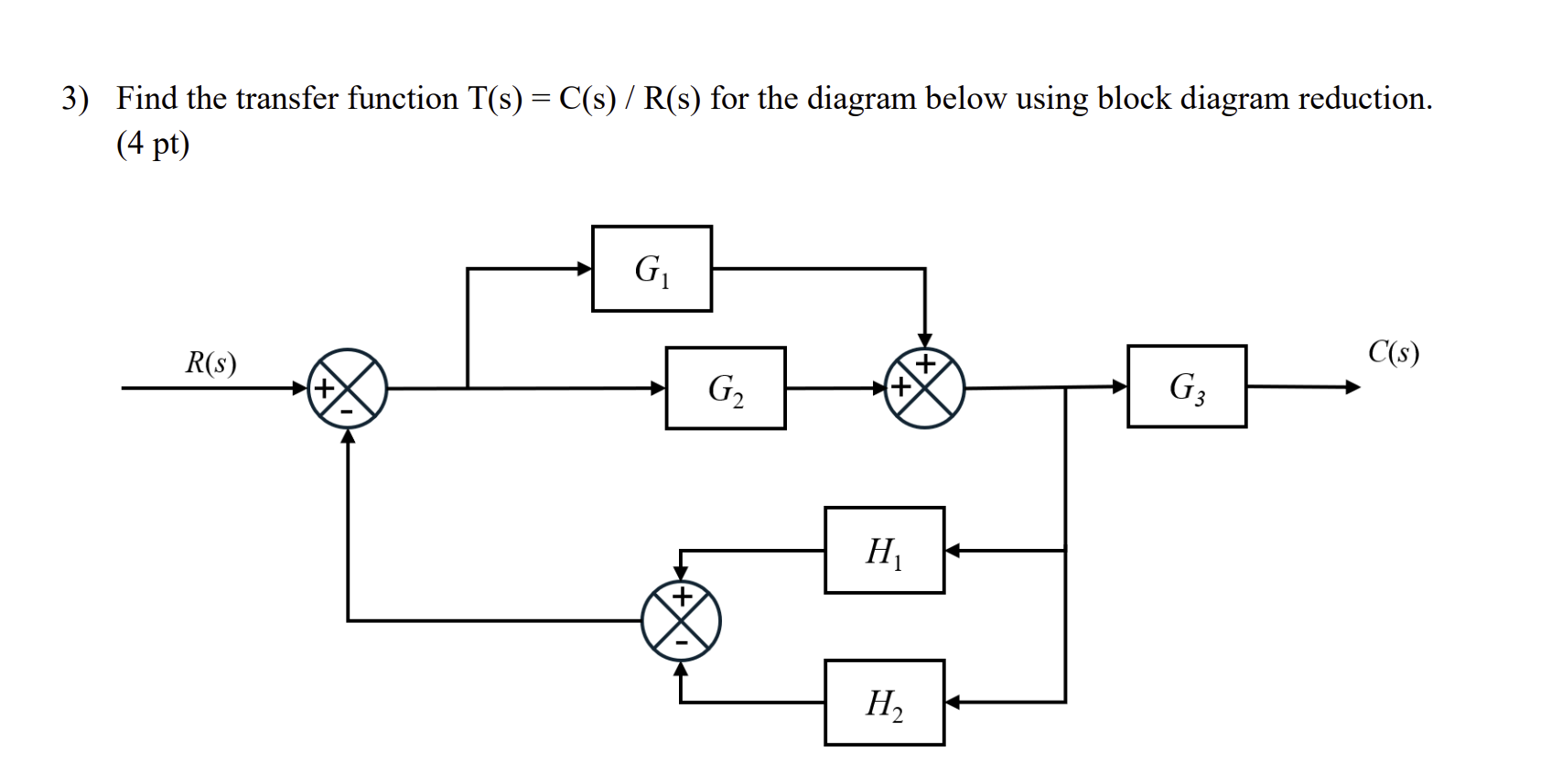

.Find the transfer function T(s)= C(s)/ R(s) for the diagram below using block diagram reduction.
(4 ptFind the transfer function T(s)=CsR(s) for the diagram below using block diagram reduction.
(4pt)
. Find the transfer function T ( s ) = C ( s ) /

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

FIND THE TRANSFER FUNCTION OF THE FOLLOWING BLOCK DIAGRAM USING (A) BLOCK DIAGRAM REDUCTION VIA BLOCK MANIPULATION THEOREM, AND (2) SIGNAL FLOW GRAPH VIA MASON'S RULE 2. G ieg G R G H

Q:

A system is described by its transfer function \[\frac{Y(s)}{U(s)}=\frac{s+\frac{1}{3}}{s\left(2 s^{2}+s+2 ight)}\] a. Find the I/O equation. b. Find the state-space model from the I/O equation. c....

Q:

( 1 5 points ) Plot function block diagram for the second - order RC passive circuit shown in the following figure, in which u r is the input signal and u c is the output signal. And then find the...

Q:

The block diagram representation of a system model is presented in Figure 4.33, where \(x_{1}\) and \(x_{2}\) denote the two state variables. a. Derive the state-space form directly from the block...

Q:

Find the Transfer Function model of the system in the following Block Diagram model. U(s) + H 2 Y(s) G G G3 + H Block Diagram

Q:

a) Given the following system below Where wwwm S X(t) dy(t) dt S +y(t)= x(t) and S Find the transfer function of the system b) Given the following block diagram 1/m D Y(t) K $ = Z(1) dz(t) dt c)...

Q:

a=1/s integral B=1/s integral C=2 d=1.5 E=.01 Construct the following block diagram (Figure 3) in Labview. Using values shown below, simulate the diagram and plot the output vs. time. Use a...

Q:

PLEASE ANSWER QUESTION 8 A liquid vessel has an inlet and an outlet streams. The outlet stream flows through a valve having a resistance R. To control the level at a specified value a PI...

Q:

Block Reduction on a DC Motor My Solutions > Figure shows the block diagram of a dc - motor control system. The signal N ( S ) denotes the frictional torque at the motor shat Find the transfer...

Q:

Please find the transfer function with steps by using block diagram reduction not singnal flow. thank you for your help Homework Problem Set 2 Question 1)Find the transfer function using block...
