Finite Element Analysis $-$Beam Element $-$ Both calculations and diagrams please$-$ if you could name or label each part $($i$),($ii$),($iii$),($iv$),$ i would really appreciate it$.$ thanks

you

Take EI $=20000$kNm$^(2),$ L$=2\mathrm{.}0$ m$,$ w $=16$ kN$/$m

$($i$)$ the equivalent nodal loads due to the uniformly distributed load, w$,$ for element $2.$

$($ii$)$ the rotations at nodes $2$ and $3.$

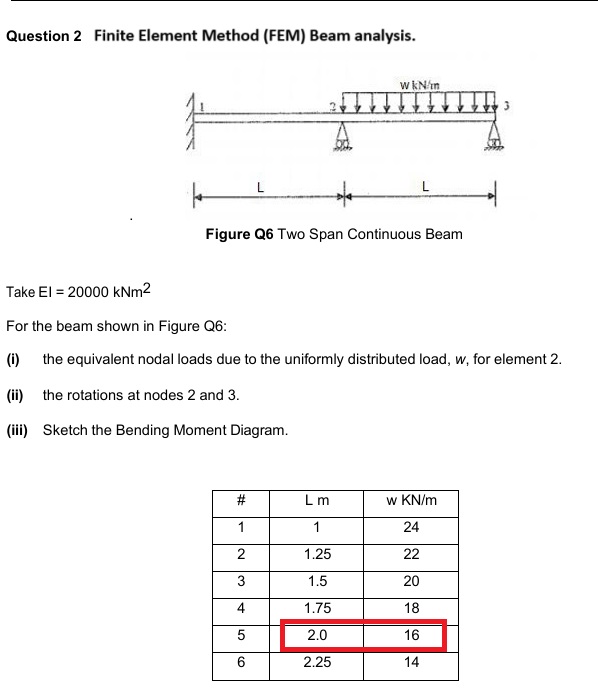

$($iii$)$ Sketch the Bending Moment Diagram. Question $2$ Finite Element Method $($FEM$)$ Beam analysis.

Take EI $\backslash (=20000\backslash )$ kNm$^2$

For the beam shown in Figure Q$6$:

$($i$)$ the equivalent nodal loads due to the uniformly distributed load, $\backslash ($ w $\backslash ),$ for element $2.$

$($ii$)$ the rotations at nodes $2$ and $3.$

$($iii$)$ Sketch the Bending Moment Diagram.
