first two boxes are either short or undefined and the rest are low OR high

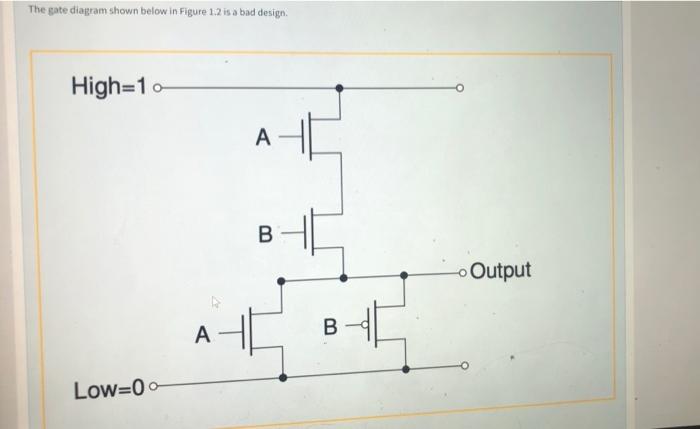

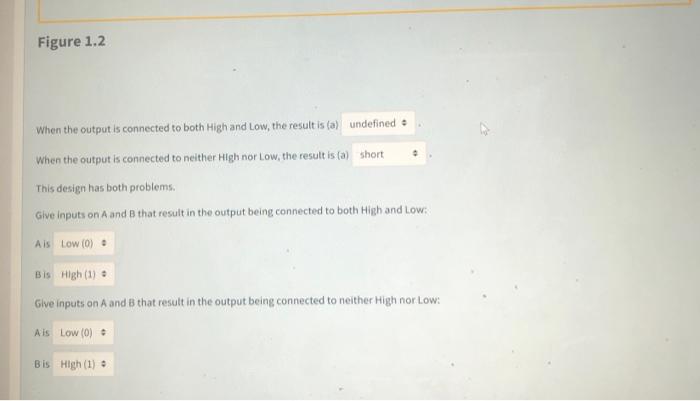

The gate diagram shown below in Figure 1.2 is a bad design, High=1 A . B Output . A B Low=0 Figure 1.2 When the output is connected to both High and Low, the result is (a) undefined When the output is connected to neither High nor Low, the result is (a) short This design has both problems. Give inputs on A and B that result in the output being connected to both High and Low: Als Low (0) Bis High (1) Give inputs on A and B that result in the output being connected to neither High nor Low: Als Low (0) Bis High (1)
