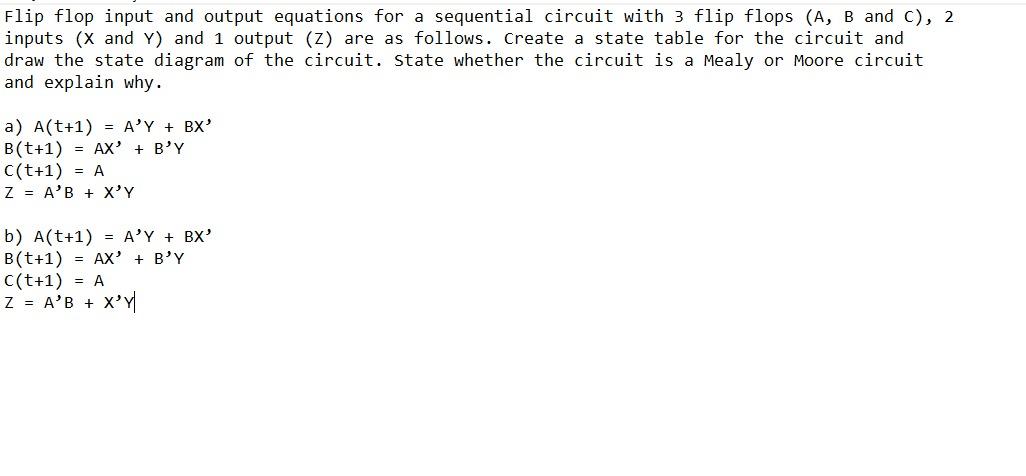

Flip flop input and output equations for a sequential circuit with 3 flip flops (A, B and C), 2 inputs (X and Y) and 1 output (2) are as follows. Create a state table for the circuit and draw the state diagram of the circuit. State whether the circuit is a Mealy or Moore circuit and explain why. a) A(t+1) = A'Y + BX' B(t+1) = AX' + B'Y C(t+1) = A Z = A'B + X'Y b) A(t+1) = A'Y + BX' B(t+1) = AX + B'Y C(t+1) = A z = A'B + X'Y
