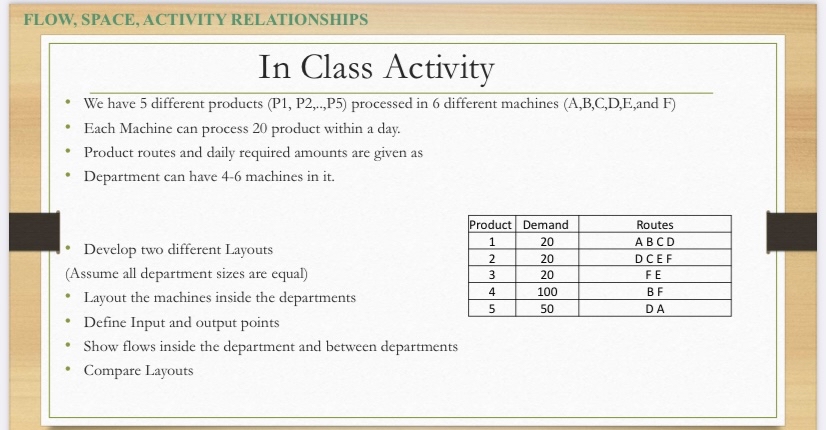

FLOW, SPACE, ACTIVITY RELATIONSHIPS

In Class Activity

We have $5$ different products $($P$1,$ P$2,..,$P$5)$ processed in $6$ different machines $($A$,$B$,$C$,$D$,$E$,$ and F$)$

Each Machine can process $20$ product within a day.

Product routes and daily required amounts are given as

Department can have $4-6$ machines in it$.$

Develop two different Layouts

$($Assume all department sizes are equal$)$

Layout the machines inside the departments

$\backslash$table$[[$Product$,$Demand,Routes$],[1,20,$A B C D$],[2,20,$DCE F$],[3,20,$FE$],[4,100,$B F$],[5,50,$DA$]]$

Define Input and output points

Show flows inside the department and between departments

Compare Layouts
