Question: Follow these instructions to finish the hardware and software programming in Assembly. Refer to the example given on page 4 3 6 of the textbook

Follow these instructions to finish the hardware and software programming in Assembly. Refer to the example given on page 436 of the textbook (program 13-1).
1. Try to replace the bottom 5 rows with a section of code to identify if the input voltage on ADC0 is equal or above 2.5V. If the input is >=2.5V, set PB5 to 1, delay for ~1 second, and then set PB5 to 0.
2. Connect an LED and resistor to PB5 to show the output voltage with LED on/off
3. Connect the ADC0 port to GND or 5V
4. Run your code on the Arduino card to test it.
Question 1

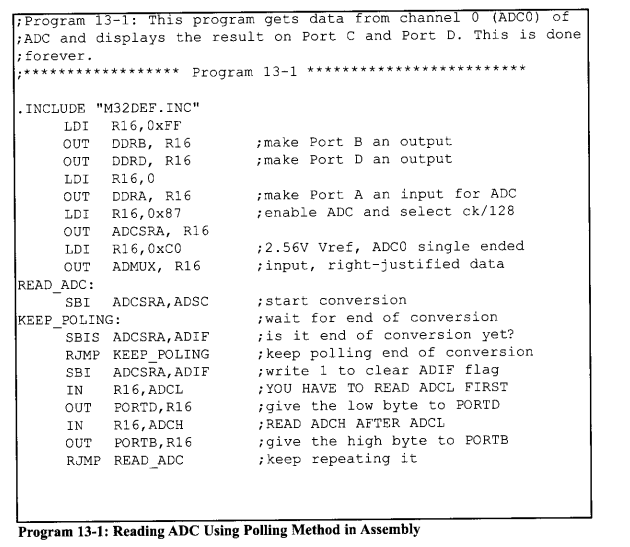

Include your flowchart and assembly language here.Program 13-1: Reading ADC Using Polling Method in Assembly
