For a 3D Model. Final answer should be 6x6 Matrix

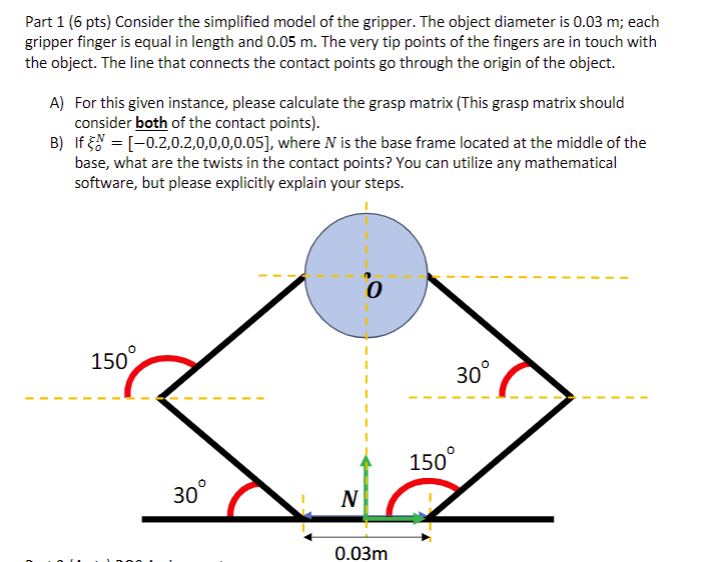

Part 1(6 pts) Consider the simplified model of the gripper. The object diameter is 0.03 m ; each gripper finger is equal in length and 0.05 m . The very tip points of the fingers are in touch with the object. The line that connects the contact points go through the origin of the object.
A) For this given instance, please calculate the grasp matrix (This grasp matrix should consider both of the contact points).
B) If oN=[-0.2,0.2,0,0,0,0.05], where N is the base frame located at the middle of the base, what are the twists in the contact points? You can utilize any mathematical software, but please explicitly explain your steps.
For a 3 D Model. Final answer should be 6 x 6
