Question: For a beam having the cross section shown, determine the largest allowable vertical shear if the shearing stress is not to exceed 8 . 5

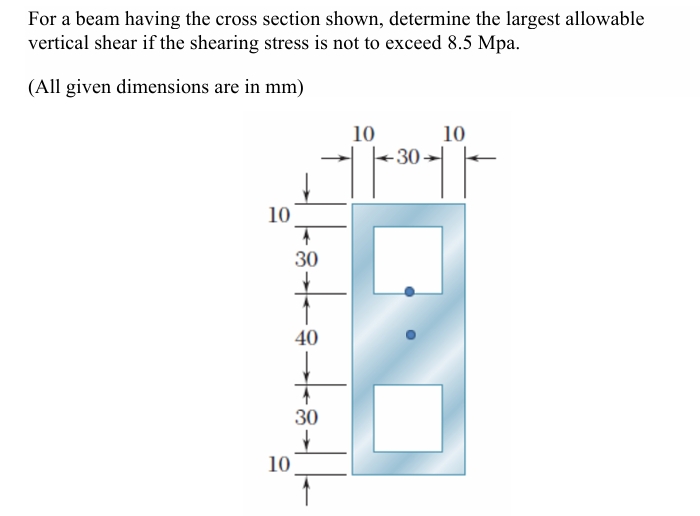

For a beam having the cross section shown, determine the largest allowable vertical shear if the shearing stress is not to exceed 8.5 Mpa .
(All given dimensions are in mm )
For a beam having the cross section shown,
