Question: For A - C please be detailed and precise ! ! ! ! ! A . Derive the expressions for Vout in terms of Vs

For A-C please be detailed and precise !!!!!

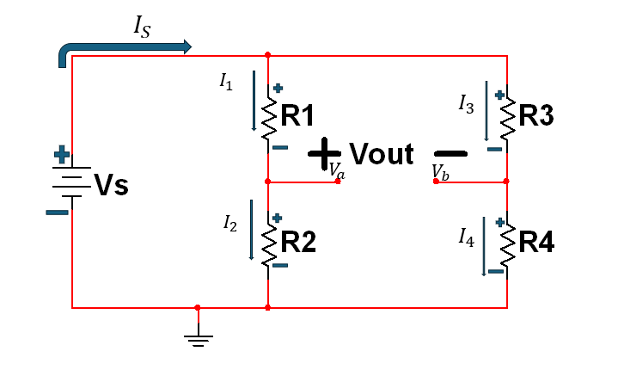

A. Derive the expressions for Vout in terms of Vs, R1, R2, R3, and R4. Use your voltages and/or currents from your labelled schematic.
B. Derive conditions (no numbers) for the resistors (R1, R2, R3, R4) to provide Vout =0, Vout >0, and Vout 0.
C. Use your derived conditions for the resistors to select numerical values of resistances R1, R2, R3, and R4 to meet design Specifications 1,2, and 3.Verify these specifications are met with these selectionsusing simulation. Use a potentiometer to model the thermistor
Specification 1 Vout =0 when current temperature is equal to room temperature ()
Specification 2 : Vout >0 when current temperature goes above room temperature ()
Specification 3 : Vout 0 when current temperature goes below room temperature ()
D. Build your Part 1 design in hardware a verify that it meets specifications 2 and 3. Use something to heat the thermistor as well and cool it. You can use your fingers to heat it up and an ice pack to cool it down for example. Provide screenshots / videos to demonstrate this.
PLEASE PLEASE SHOW ME HOW TO DO THE HARDWARE PLEASE I NEED HELO I DO NOT KNOW PLEASEBE DETAILED WITH PICTURES
For A - C please be detailed and precise ! ! ! !
