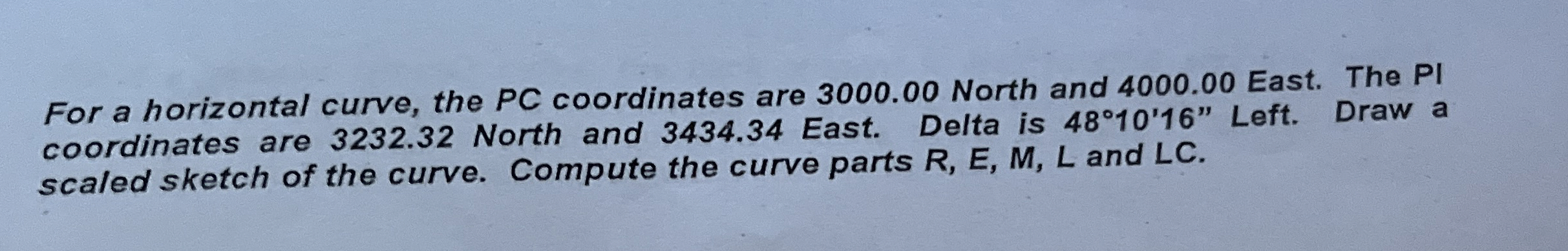

For a horizontal curve, the PC coordinates are $3000\mathrm{.}00$ North and $4000\mathrm{.}00$ East. The PI coordinates are $3232\mathrm{.}32$ North and $3434\mathrm{.}34$ East. Delta is $48{10}^{\text{'}}{16}^{\text{'}\text{'}}$ Left. Draw a scaled sketch of the curve. Compute the curve parts R$,$ E$,$ M$,$ L and LC$.$
