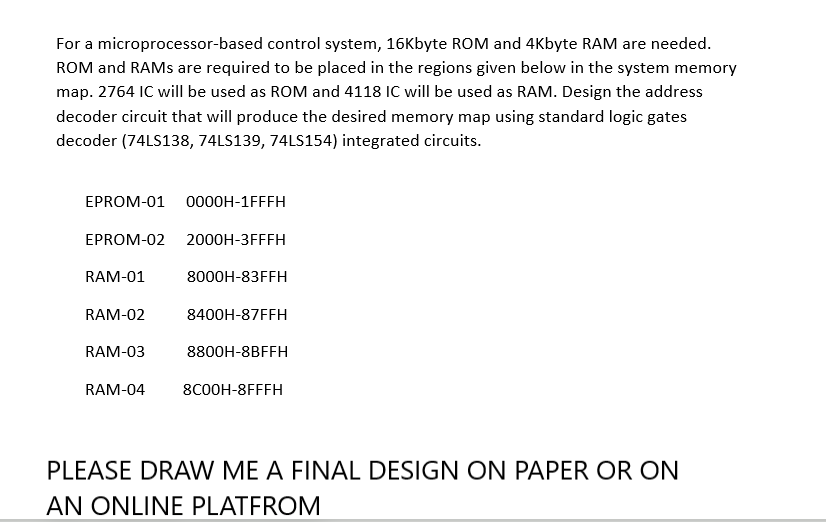

For a microprocessor$-$based control system, $16$Kbyte ROM and $4$Kbyte RAM are needed.

ROM and RAMs are required to be placed in the regions given below in the system memory

map. $2764$ IC will be used as ROM and $4118$ IC will be used as RAM. Design the address

decoder circuit that will produce the desired memory map using standard logic gates

decoder $(74$LS$138,74$LS$139,74$LS$154)$ integrated circuits.

EPROM$-010000$H$-1$FFFH

EPROM$-022000$H$-3$FFFH

RAM$-018000$H$-83$FFH

RAM$-028400$H$-87$FFH

RAM$-038800$H$-8$BFFH

RAM$-048$C$00$H$-8$FFFH

PLEASE DRAW ME A FINAL DESIGN ON PAPER OR ON

AN ONLINE PLATFROM
