Question: For a new process, the following process streams must be cooled or heated: Use the MUMNE algorithm for heat-exchanger networks and a minimum approach temperature

For a new process, the following process streams must be cooled

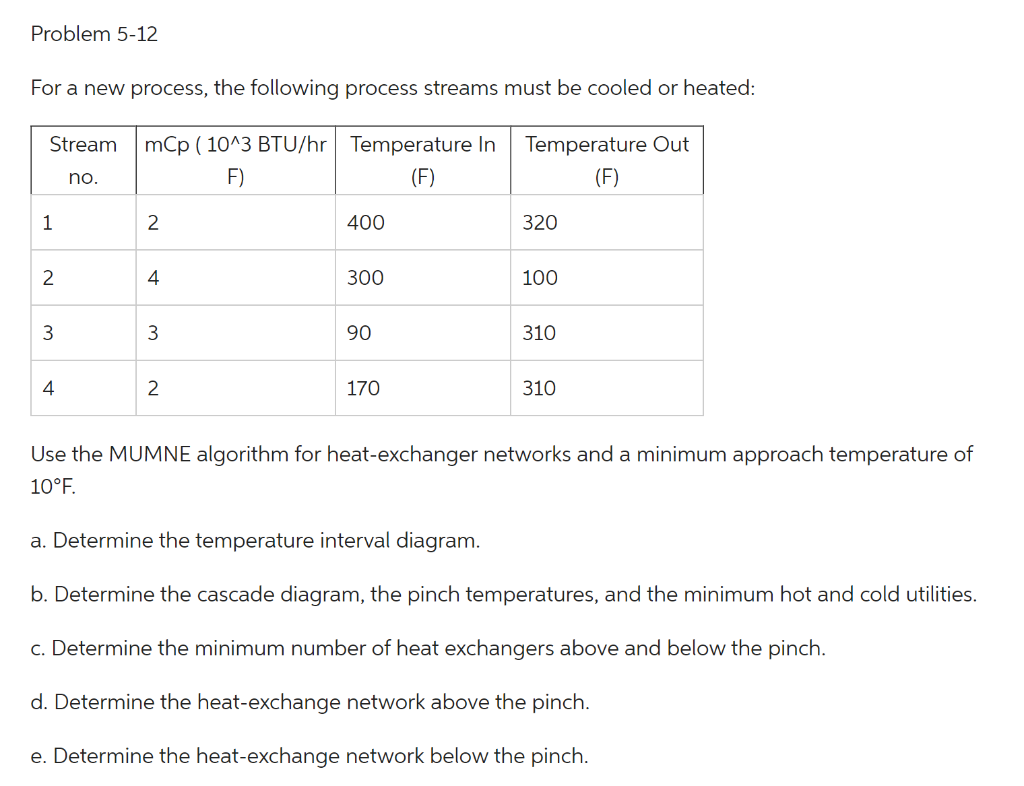

For a new process, the following process streams must be cooled or heated: Use the MUMNE algorithm for heat-exchanger networks and a minimum approach temperature of 10F. a. Determine the temperature interval diagram. b. Determine the cascade diagram, the pinch temperatures, and the minimum hot and cold utilities. c. Determine the minimum number of heat exchangers above and below the pinch. d. Determine the heat-exchange network above the pinch. e. Determine the heat-exchange network below the pinch

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Chemical Engineering Questions!

For a new process, the following process streams must be cooled or heated. Use the MUMNE algorithm for heat - exchanger networks and a minimum approach temperature of 2 0 C . \ table [ [ Stream No ,...

For a process, the following process streams must be cooled or heated Use the MUMNE algorithm for heat-exchanger networks and a minimum approach temperature of 10F. a. Determine the temperature...

For a new process, the following process streams must be cooled or heated: Use the MUMNE algorithm for heat-exchanger networks and a minimum approach temperature of 10F. Determine the temperature...

For a new process, the following process streams must be cooled or heated: Use the MUMNE algorithm for heat-exchanger networks and a minimum approach temperature of 20C. Determine the temperature...

For a new process, the following process streams must be cooled or heated: Use the MUMNE algorithm for heat-exchanger networks and a minimum approach temperature of 10F. Determine the temperature...

For a new process, the following process streams must be cooled or heated: Use the MUMNE algorithm for heat-exchanger networks and a minimum approach temperature of $10^{\circ} \mathrm{F}$. a....

For a process, the following process streams must be cooled or heated. Using the MUMNE (minimum utility, minimum number of exchangers heat exchanger network) algorithm for heatexchanger networks and...

For a process, the following process streams must be cooled or heated: Use the MUMNE algorithm for heat-exchanger networks and a minimum approach temperature of 20F. Determine the temperature...

In a process design, the following process streams must be cooled or heated: Use the MUMNE algorithm for heat-exchanger networks and a minimum approach temperature of 20C. Determine the temperature...
