Question: For a pump with no air vessel, stroke length = 3 0 0 m m , piston diameter = 1 2 5 m m ,

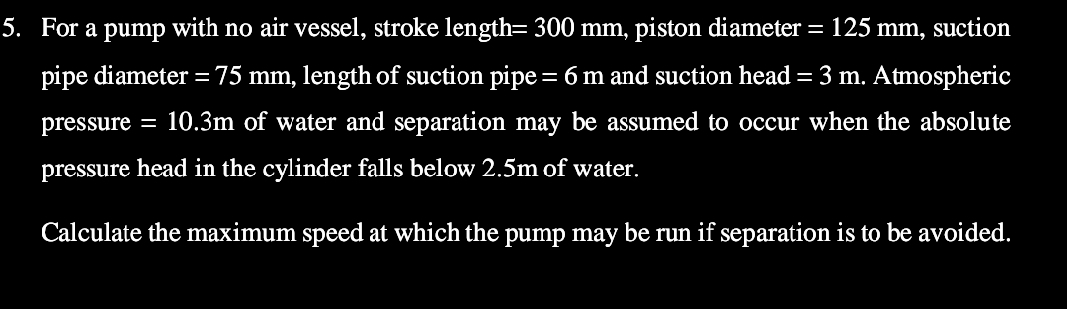

For a pump with no air vessel, stroke length =300mm, piston diameter =125mm, suction pipe diameter =75mm, length of suction pipe =6m and suction head =3m. Atmospheric pressure =10.3m of water and separation may be assumed to occur when the absolute pressure head in the cylinder falls below 2.5 m of water.
Calculate the maximum speed at which the pump may be run if separation is to be avoided.
For a pump with no air vessel, stroke length = 3
