Question: For all problems, do the LRFD part only. Bearing Strength, Spacing, and Edge - Distance Requirements 7 . 3 - 1 The tension member is

For all problems, do the LRFD part only.
Bearing Strength, Spacing, and Edge-Distance Requirements

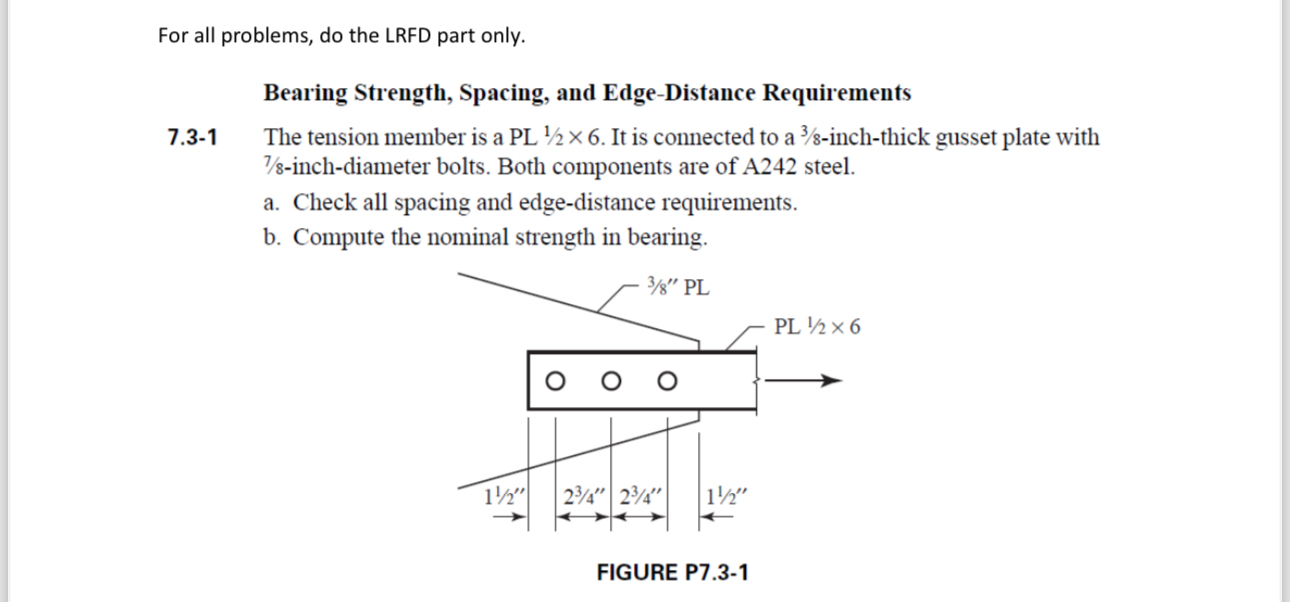

7.3-1 The tension member is a PL126. It is connected to a 38-inch-thick gusset plate with 78-inch-diameter bolts. Both components are of A242 steel.
a. Check all spacing and edge-distance requirements.
b. Compute the nominal strength in bearing.
For all problems, do the LRFD part only. Bearing
