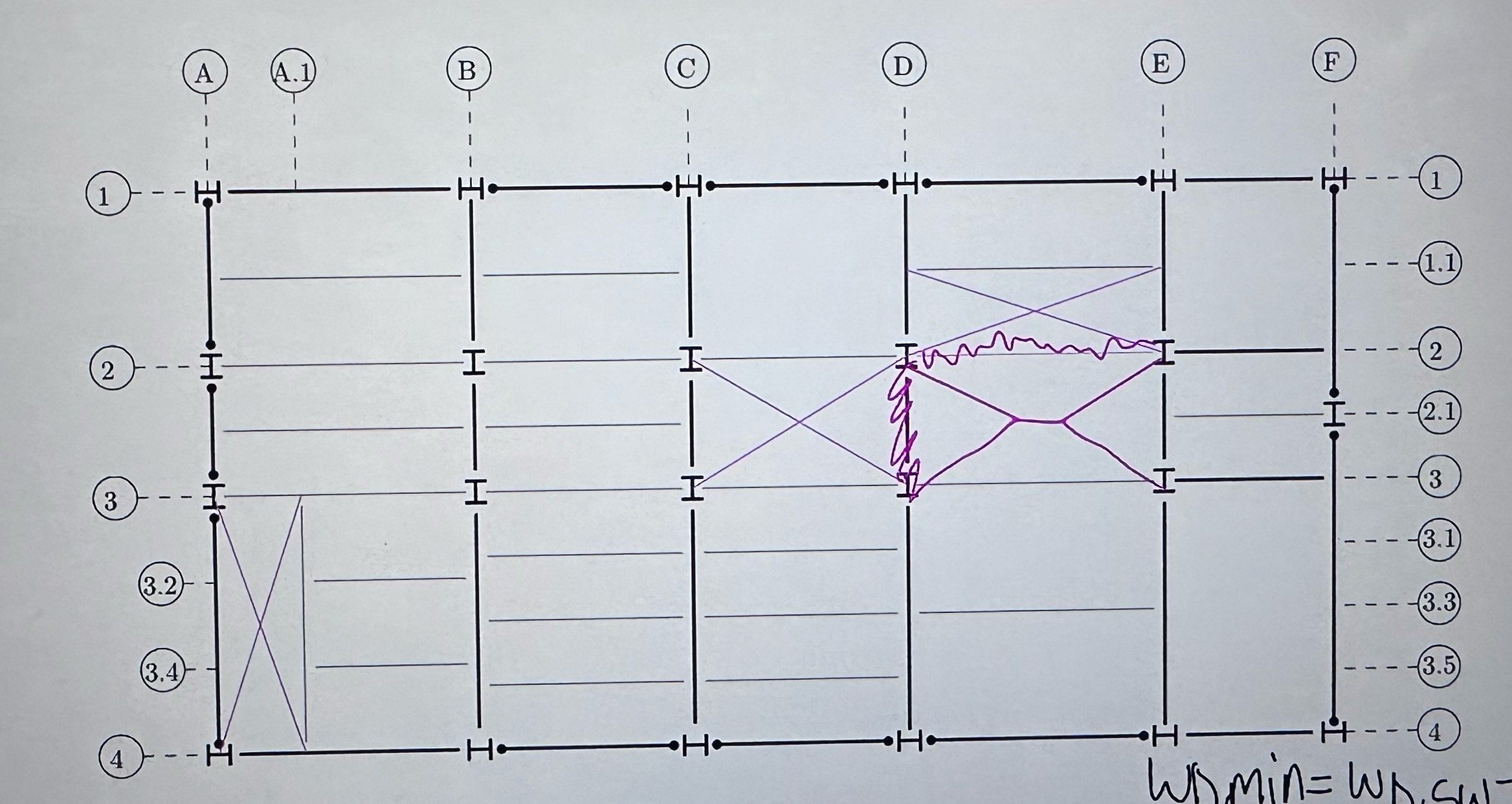

For Beam $2,$ D$-$E and Beam D$,2-3$ on the typical floor plan, provide the following:

Shade the tributary area on the floor plan

Draw a FBD for live load that includes the applied load$($s$)$

A$.$ Calculate the end forces and show on the FBD$.$ You do not need to show calculations for the reactions

B$.($required$)$ Sketch the shear and

C$.$ You do not need to write equations on

Repeat #$2$ for dead load

WARNING: Do not put the live and dead loads on the same diagrams. This is because they will need to later be factored when used in load combinations
