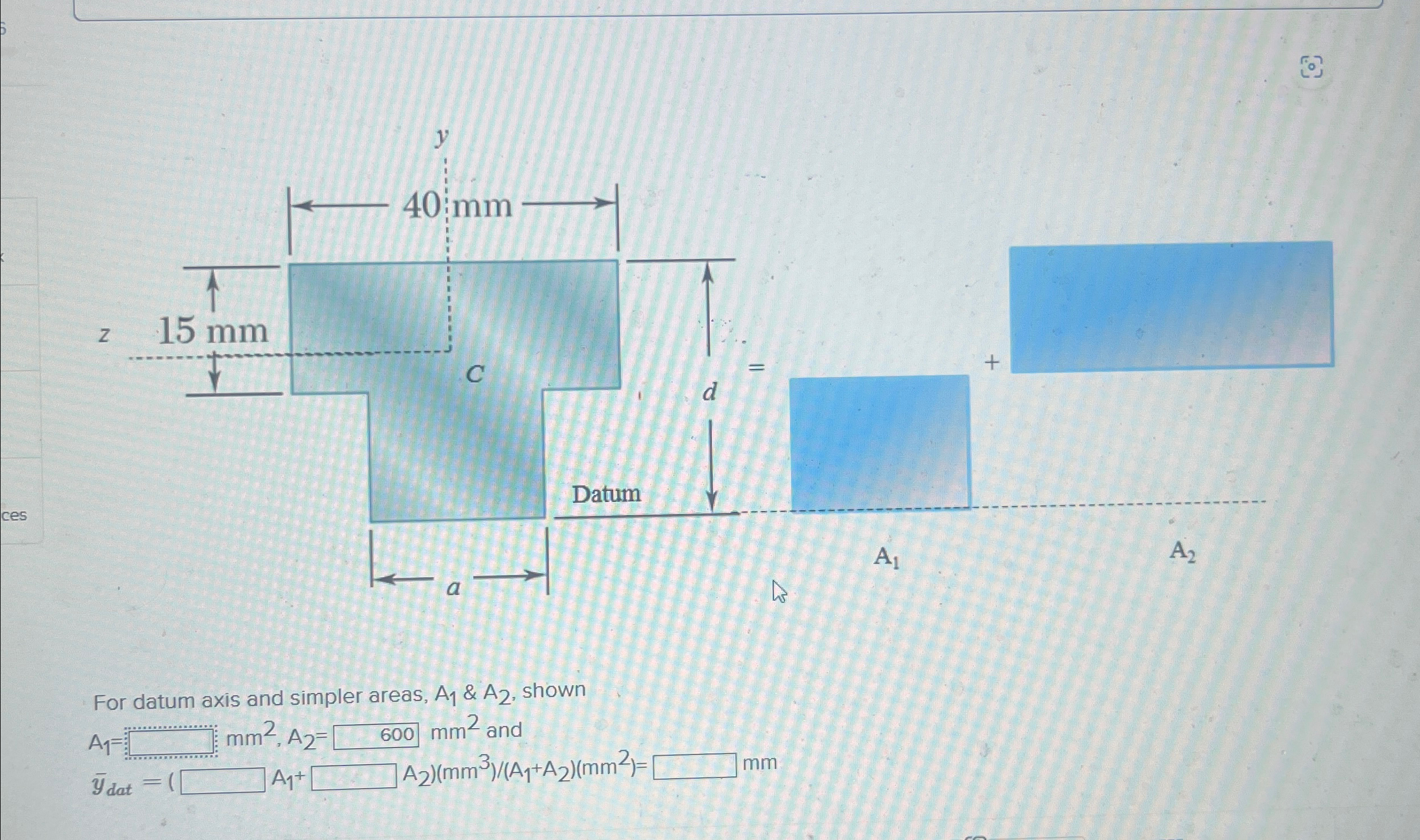

Question: For datum axis and simpler areas, A 1 & A 2 , shown A 1 = m m 2 , A 2 = 1 m

For datum axis and simpler areas, A1&A2, shown
A1=mm2,A2=1mm2 and
?bar(y)dat=1A1+(:A2
The beam shown is made of nylon for which the allowable stress is 24MPa in tension and 18MPa in compression. If a =22mm and d=35mm, determine the largest couple M that can be applied to the beam
For datum axis and simpler areas, A 1 & A 2 ,

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
