Question: For each problem, draw a force diagram for the extended body. Show all torques or turning effects. Identify the possible pivot points.5) A 4.0 m

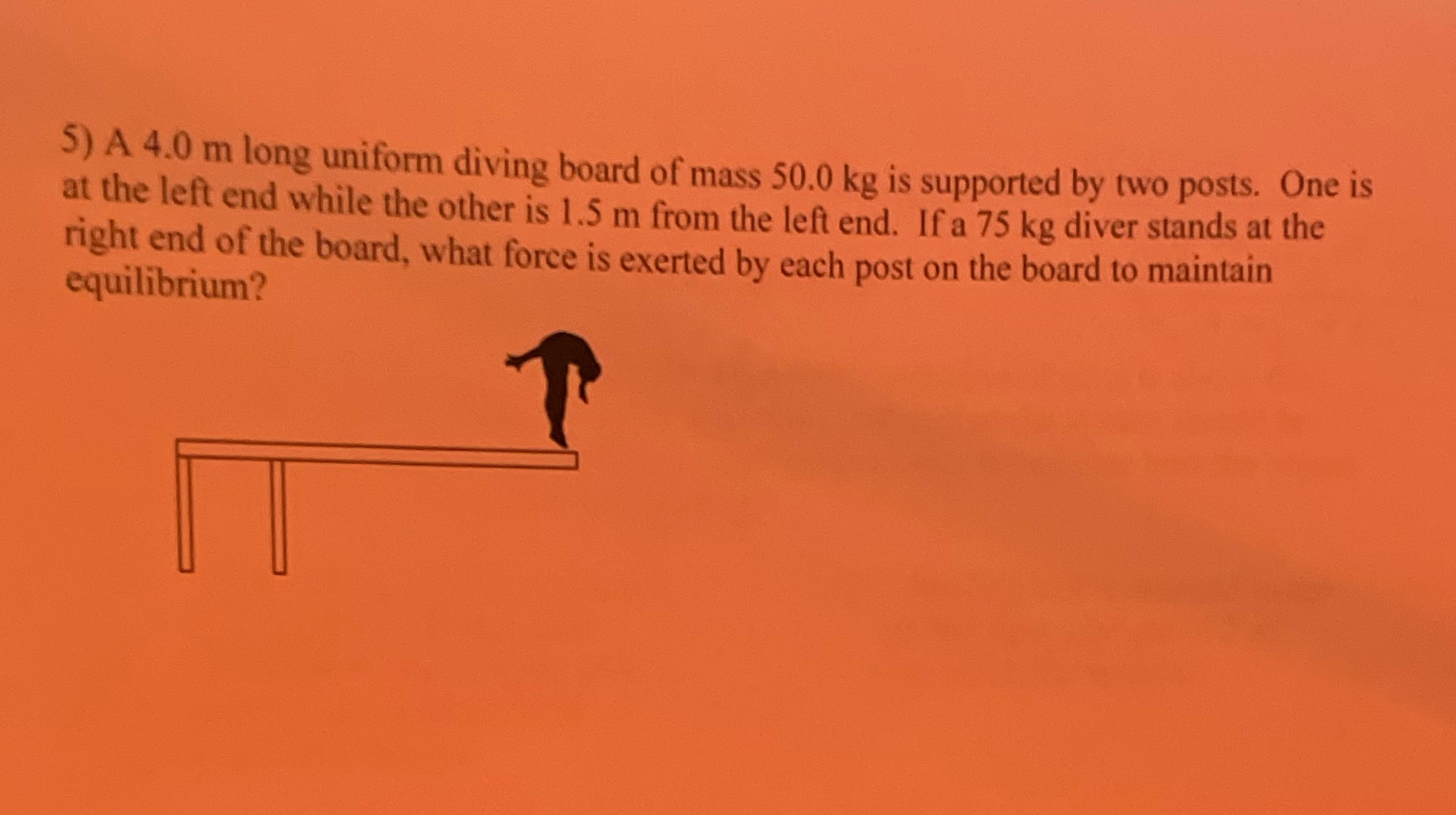

For each problem, draw a force diagram for the extended body. Show all torques or turning effects. Identify the possible pivot points.5) A 4.0 m long uniform diving board of mass 50.0 kg is supported by two posts. One is at the left end while the other is 1.5 m from the left end. If a 75 kg diver stands at the right end of the board, what force is exerted by each post on the board to maintain equilibrium?Please show all work or otherwise I can't learn it!

5) A 4.0 m long uniform diving board of mass 50.0 kg is supported by two posts. One is at the left end while the other is 1.5 m from the left end. If a 75 kg diver stands at the right end of the board, what force is exerted by each post on the board to maintain equilibrium

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
