Question: For Nos 3 9 to 4 1 : A rectangular foundation 3 m 6 m as shown in the plan transmits a stress of 1

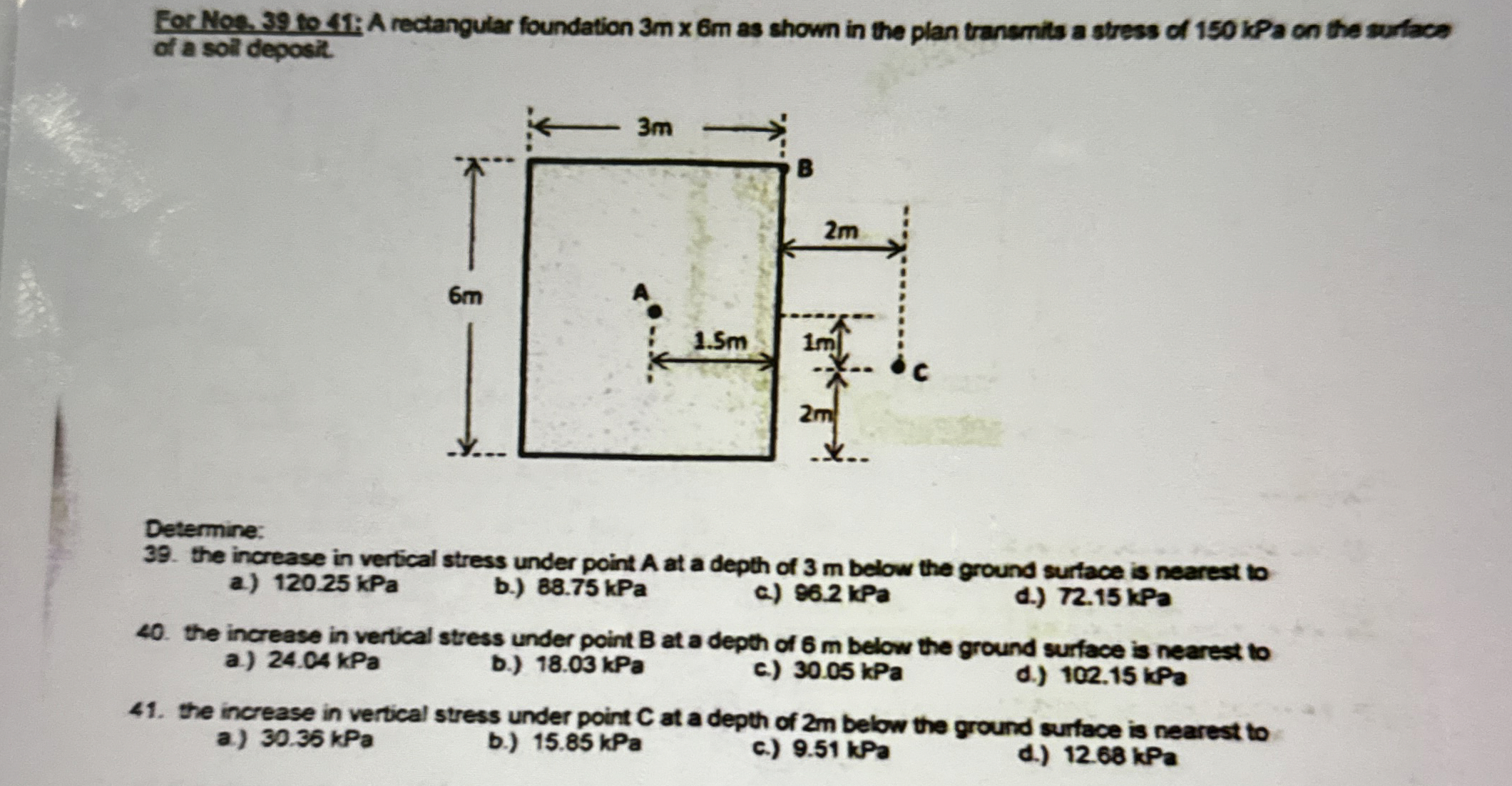

For Nos 39 to 41: A rectangular foundation 3m6m as shown in the plan transmits a stress of 150 kPa on the surface of a soli deposit?
Determine:
39. the increase in vertical stress under point A at a depth of 3 m below the ground surface is nearest to
a.)120.25 kPa
b.)88.75 kPa
a)96.2 kPa
d.)72.15 kPa
40. the increase in vertical stress under point B at a depth of 6 m below the ground surface is nearest to
a.)24.04 kPa
b.)18.03 kPa
c.)30.05 kPa
d.)102.15 kPa
41. the increase in vertical stress under point C at a depth of 2 m below the ground surface is nearest to
a.)30.35 kPa
b.)15.85 kPa
c.)9.51 kPa
d.)12.68 kPa
For Nos 3 9 to 4 1 : A rectangular foundation 3 m
