Question: For the activities and the dependencies shown below, do the following: A Sketch the Activity On Node (Precedence) Diagram for the project B. Perform the

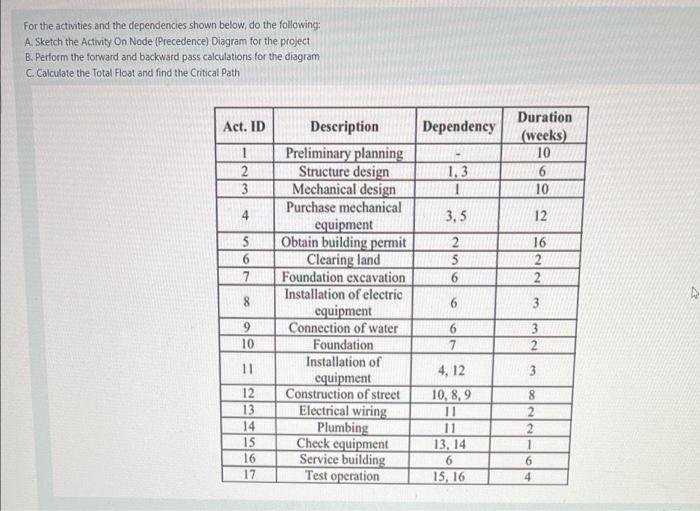

For the activities and the dependencies shown below, do the following: A Sketch the Activity On Node (Precedence) Diagram for the project B. Perform the forward and backward pass calculations for the diagram C. Calculate the Total Float and find the Critical Path Act. ID Dependency 1 2 3 Duration (weeks) 10 6 10 1.3 1 4 3,5 12 16 5 6 7 2 5 6 2 8 Description Preliminary planning Structure design Mechanical design Purchase mechanical equipment Obtain building permit Clearing land Foundation excavation Installation of electric equipment Connection of water Foundation Installation of equipment Construction of street Electrical wiring Plumbing Check equipment Service building Test operation 6 3 3 9 10 6 7 3 2 11 3 12 13 14 15 16 17 4, 12 10,8,9 11 11 13, 14 6 15, 16 8 2 2 1 6 4

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
