Question: For the beam and loading shown, consider section n - n . Given: P = 1 5 kips. 1 in . Problem 0 6 .

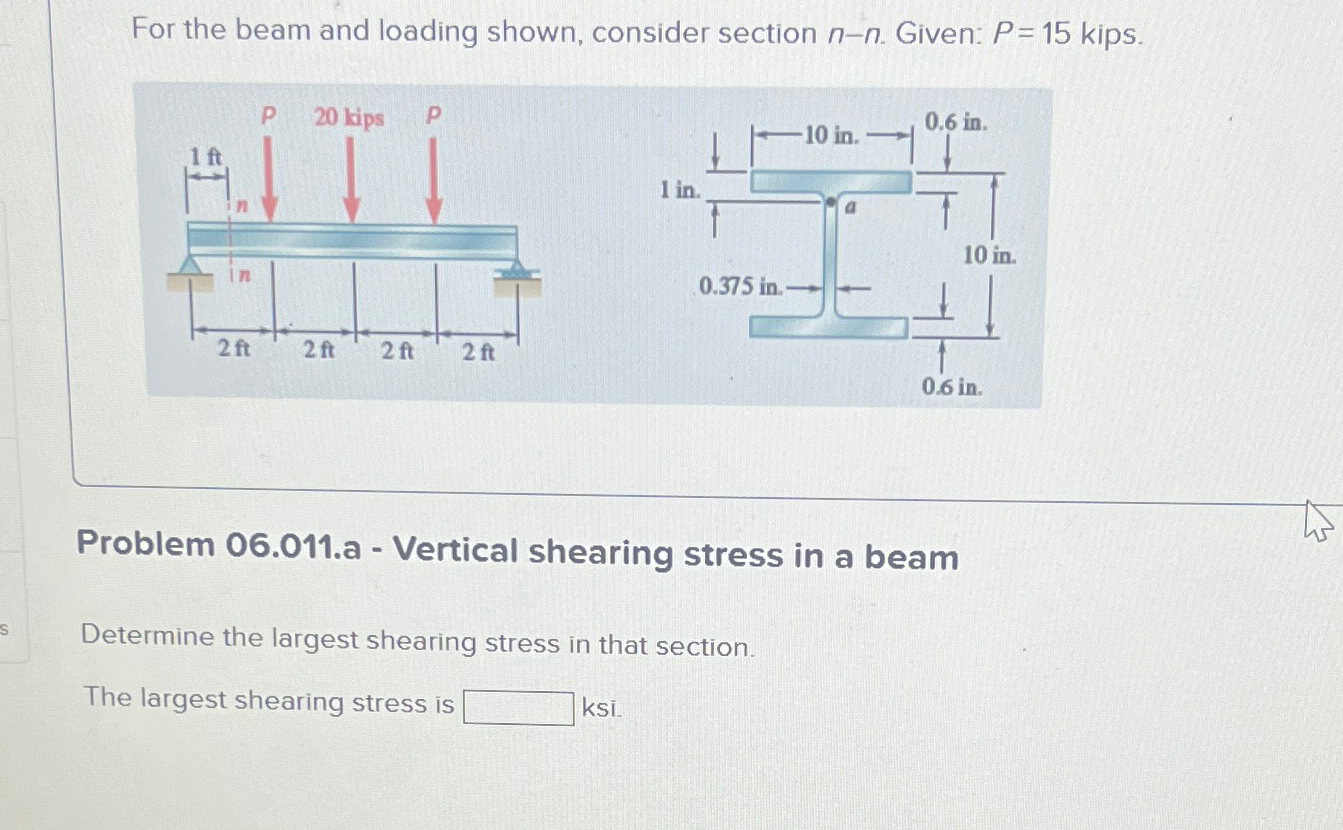

For the beam and loading shown, consider section n-n. Given: P=15 kips.
1 in.
Problem 06.011.a - Vertical shearing stress in a beam
Determine the largest shearing stress in that section.
The largest shearing stress is ksi.
For the beam and loading shown, consider section

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Q:

Required information For the beam and loading shown, consider section n-n. Given: P = 15 kips. P 20 kips 2 ft 2 ft 2 ft 2 ft Determine the largest shearing stress in that section. The largest...

Q:

For the beam and loading shown, consider section n - n . Given: P = 1 5 kips. Problem 0 6 . 0 1 1 . b - Vertical shearing stress in a beam Determine the shearing stress at point a . The shearing...

Q:

For the beam and loading shown, consider section n - n . Given: P = 1 0 kips. Determine the shearing stress at point a . The shearing stress at point a is _ _ ksi.

Q:

Required information Problem 0 6 . 0 1 0 - Vertical shearing stress in a beam For the beam and loading shown, consider section \ ( n - n \ ) . Given: \ ( P = 1 4 5 \ mathrm { kN } \ ) . Problem 0 6 ....

Q:

250 mm 15 mm PROBLEM 6.11 0.3 m 65 kN 90 kN 65 kN 25 mm (300 mm) a For the beam and loading shown, consider section n-n and determine (a) 250 mm n 10 mm B the largest shearing stress in that section,...

Q:

6.9 through 6.12 For the beam and loading shown, consider section n-n and determine (a) the largest shearing stress in that section, (b) the shearing stress at point a. 15,15 30 15 15 20 0.5 m 72 kN...

Q:

Consider the beam and loading shown. Given that P = 1 4 kips, Determine the largest shearing stress in section n n . Determine the shearing stress just below point a . Problem 2 ( 1 0 points )...

Q:

Q 1 . Knowing that x = 2 3 kips. Consider the beam and loading shown, determine the maximum shearing stress at section n - n ( maximum shear stress occurs at the neutral axis ) . ( Round the final...

Q:

Consider the beam and loading shown. Given: P = 9 kips Problem 0 6 . 0 1 2 . a - Vertical shearing stress in a beam Determine the largest shearing stress in section n - n . ( Round the final answer...

Q:

Required information Consider the given beam and loading. A W L B For the beam and loading shown, identify the shear and bending-moment diagrams. (You must provide an answer before moving to the next...
