Question: For the beam and loading shown, consider section n - n . Given: P = 1 7 0 k N . Determine the shearing stress

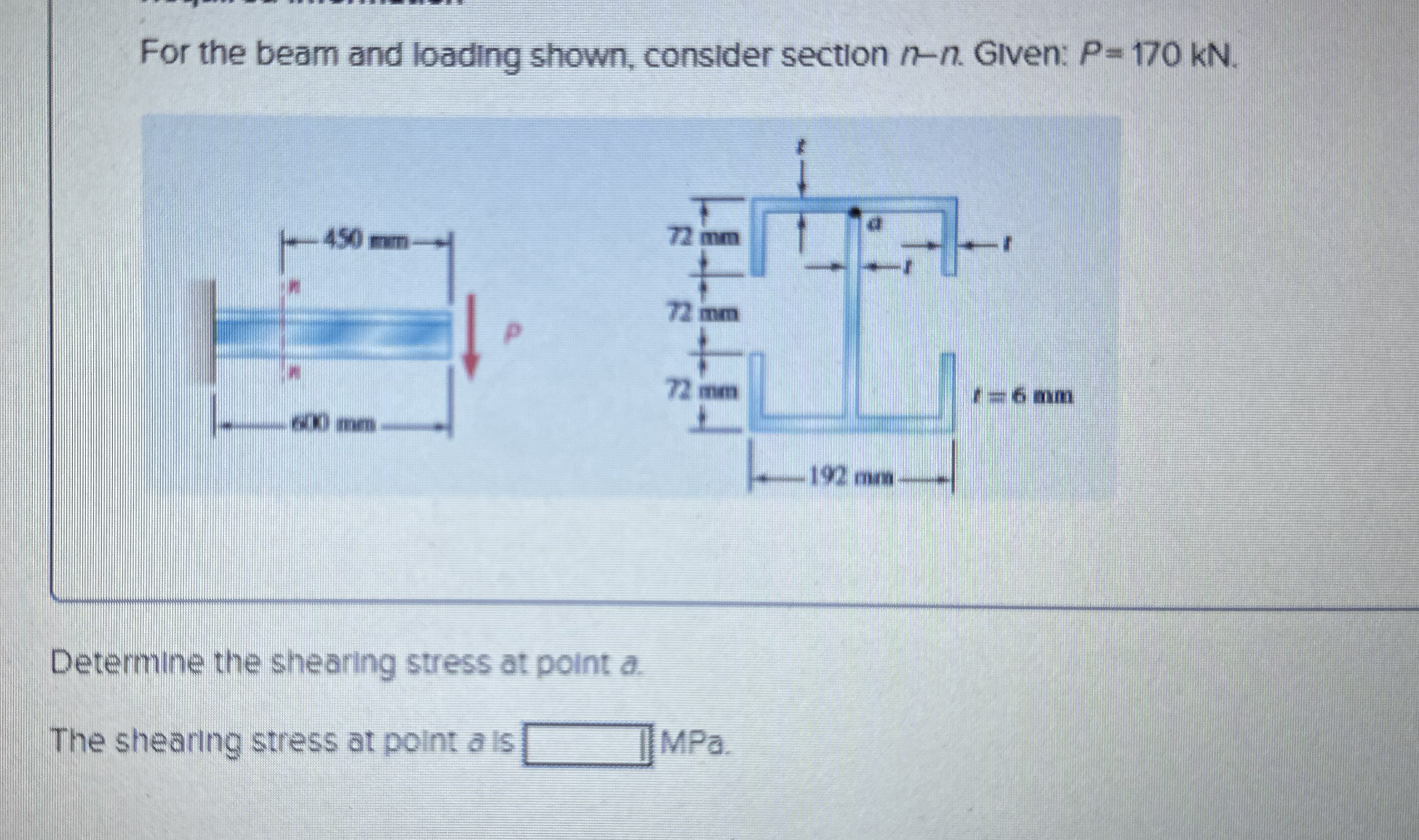

For the beam and loading shown, consider section n-n. Given: P=170kN.
Determine the shearing stress at point A.
The shearing stress at point a is ?? MPa.
For the beam and loading shown, consider section

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

For the beam and loading shown, cosider section and determine (a) the largest shearing stress in (b) shearing stress at point a: the that section.

Q:

Question 3 [ 5 marks ] [ A 3 , A 4 , B 2 ] For the beam and loading shown, consider section n - n , determine: ( a ) The maximum normal stress, ( b ) The niaximum shearing stress, ( c ) Draw the...

Q:

Required information For the beam and loading shown, consider section n-n. Given: P = 15 kips. P 20 kips 2 ft 2 ft 2 ft 2 ft Determine the largest shearing stress in that section. The largest...

Q:

6.9 through 6.12 For the beam and loading shown, consider section n-n and determine (a) the largest shearing stress in that section, (b) the shearing stress at point a. 15,15 30 15 15 20 0.5 m 72 kN...

Q:

6 . 9 through 6 . 1 2 For the beam and loading shown, consider sec - tion n - n and determine ( a ) the largest shearing stress in that section, ( b ) the shearing stress at point a .

Q:

2. For the beam and loading shown, determine the maximum allowable normal stress and shear stress 7 if the given width is b = 0.75 m. 9 170 N 250 N 25 N ke A ACA 2m 1.5 m1.5 m 4m 0.5 m

Q:

I. Draw the shear and bending-moment diagrams for the beam and loading shown and determine the maximum normal stress due to bending. Remember to calculate the Section Modulus [S] B 69M 28 75 N 3 m 4m...
