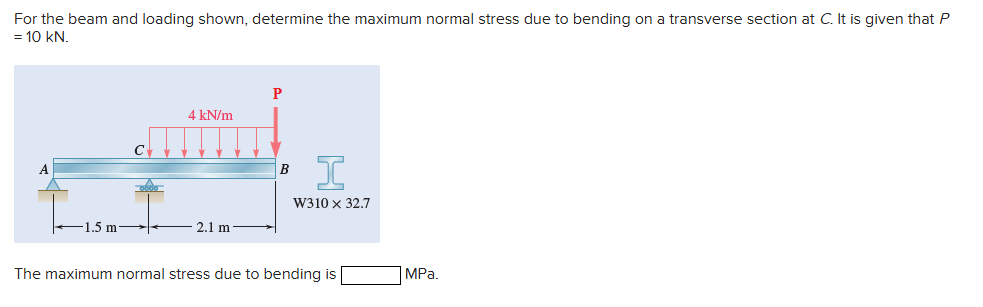

Question: For the beam and loading shown, determine the maximum normal stress due to bending on a transverse section at C . It is given that

For the beam and loading shown, determine the maximum normal stress due to bending on a transverse section at C

.

It is given that P

= 10

.

The maximum normal stress due to bending is MPa. For the beam and loading shown, determine the maximum normal stress due to bending on a transverse section at

\ (

\) .

It is given that

\ (

\) \ (= 10 \

mathrm

{

} \) .

The maximum normal stress due to bending is

MPa.

For the beam and loading shown, determine the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

A 10 kN 3 kN/m 100 mm 1.5 m 1.5 m 2.2 m 200 mm B PROBLEM 5.15 For the beam and loading shown, determine the maximum normal stress due to bending on a transverse section at C.

Problem # 2 For the beam and loading shown, determine the maximum normal stress due to bending on a transverse section at C. 10 kN I 1.5 m 1.5 m 3 kN/m 2.2m 100 mm 200 mm

6) For the beam and loading shown, determine the maximum normal stress due to bending on a transverse section at C

4) For the beam and loading shown, determine the maximum normal stress due to bending on a transverse section at C

Question 6 ( Problem 5 . 1 6 ) For the beam and loading shown, determine the maximum normal stress due to bending on a transverse section at C .

3) For the beam and loading shown, determine the maximum normal stress due to bending on a transverse section at C

Question 5 (Problem 5.15) For the beam and loading shown, determine the maximum normal stress due to bending on a transverse section at C. 3kN 3kN SO mm -15 m 15m--1.5 m 300 mm
