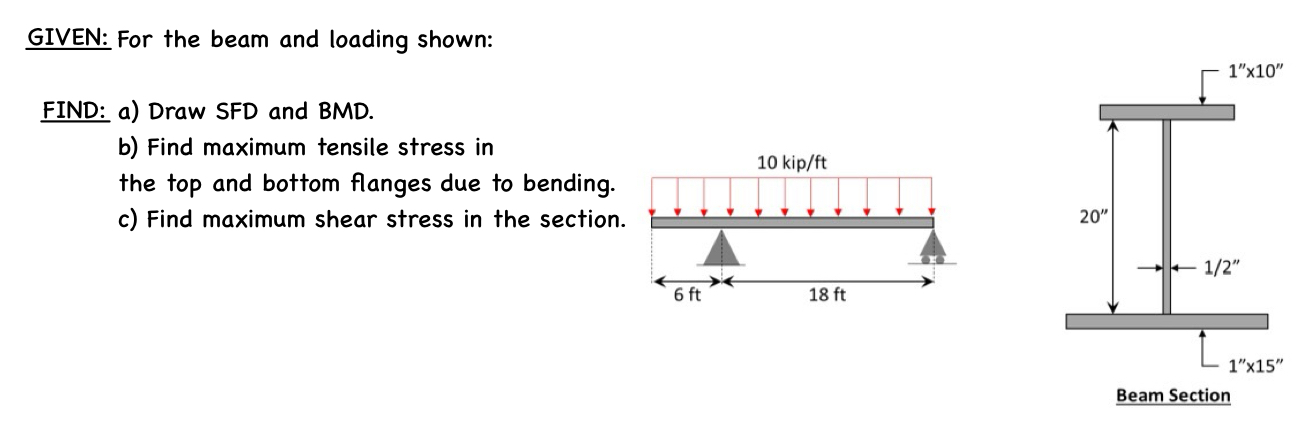

For the beam and loading shown:

FIND: a$)$ Draw SFD and BMD$.$

b$)$ Find maximum tensile stress in

the top and bottom flanges due to bending.

c$)$ Find maximum shear stress in the section. GIVEN: For the beam and loading shown:

FIND: a$)$ Draw SFD and BMD$.$

b$)$ Find maximum tensile stress in

the top and bottom flanges due to bending.

c$)$ Find maximum shear stress in the section.
