Question: For the beam shown below, ( a ) Given the reactions shown in the Figure, draw the shear force and bending moment diagrams ( to

For the beam shown below,

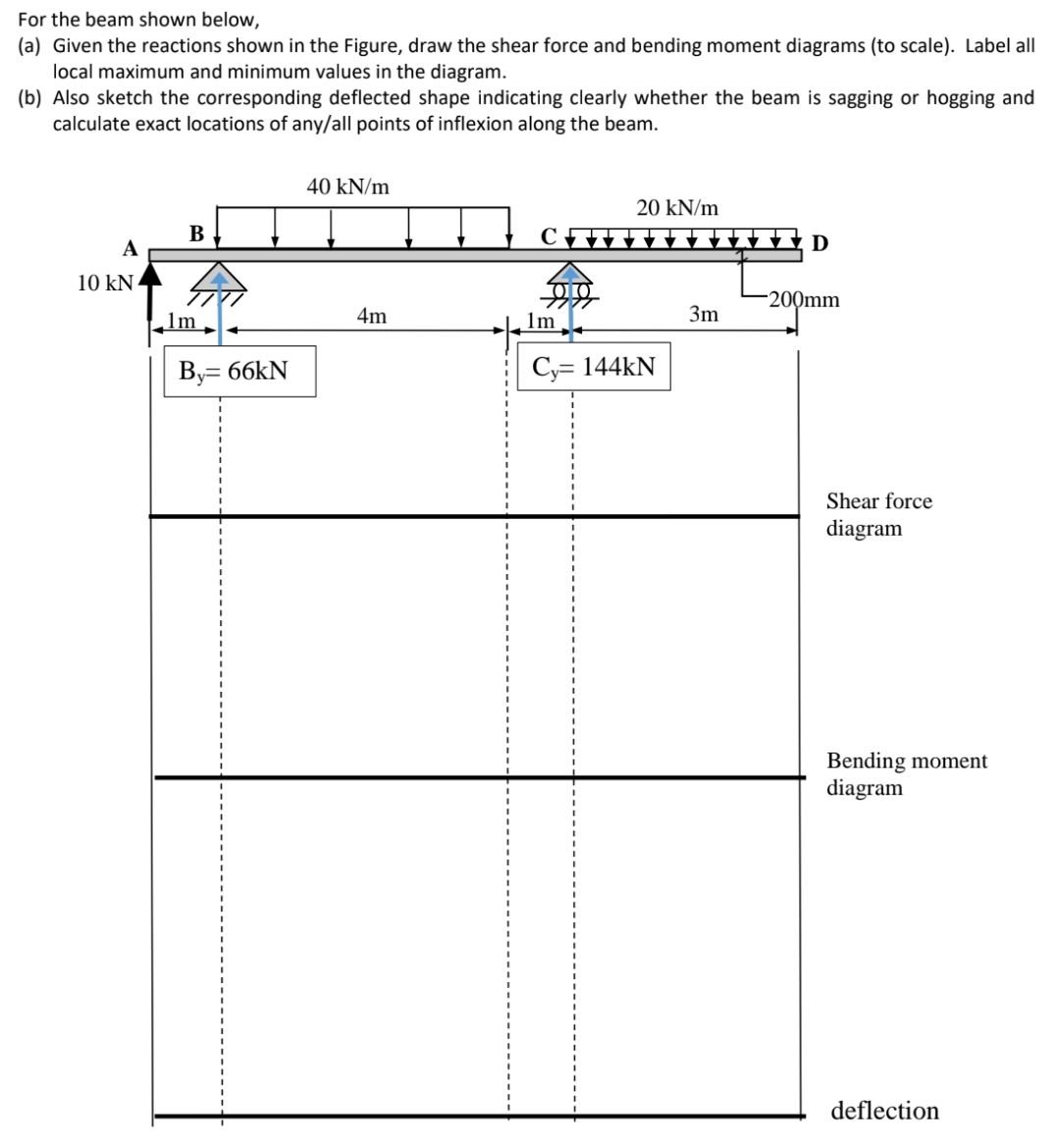

(a) Given the reactions shown in the Figure, draw the shear force and bending moment diagrams (to scale). Label all local maximum and minimum values in the diagram.
(b) Also sketch the corresponding deflected shape indicating clearly whether the beam is sagging or hogging and calculate exact locations of any/all points of inflexion along the beam.
For the beam shown below, ( a ) Given the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
