Question: For the beam shown in Figure 3 , a ) Determine the maximum compressive bending stress in the beam. State exactly what location on the

For the beam shown in Figure 3,
a) Determine the maximum compressive bending stress in the beam. State exactly what location on the beam and where on the cross-section this maximum compressive bending stress occurs.
b) Use the double integration method to calculate the deflection at point A, located at the end of the cantilever
Given: E=200GPa

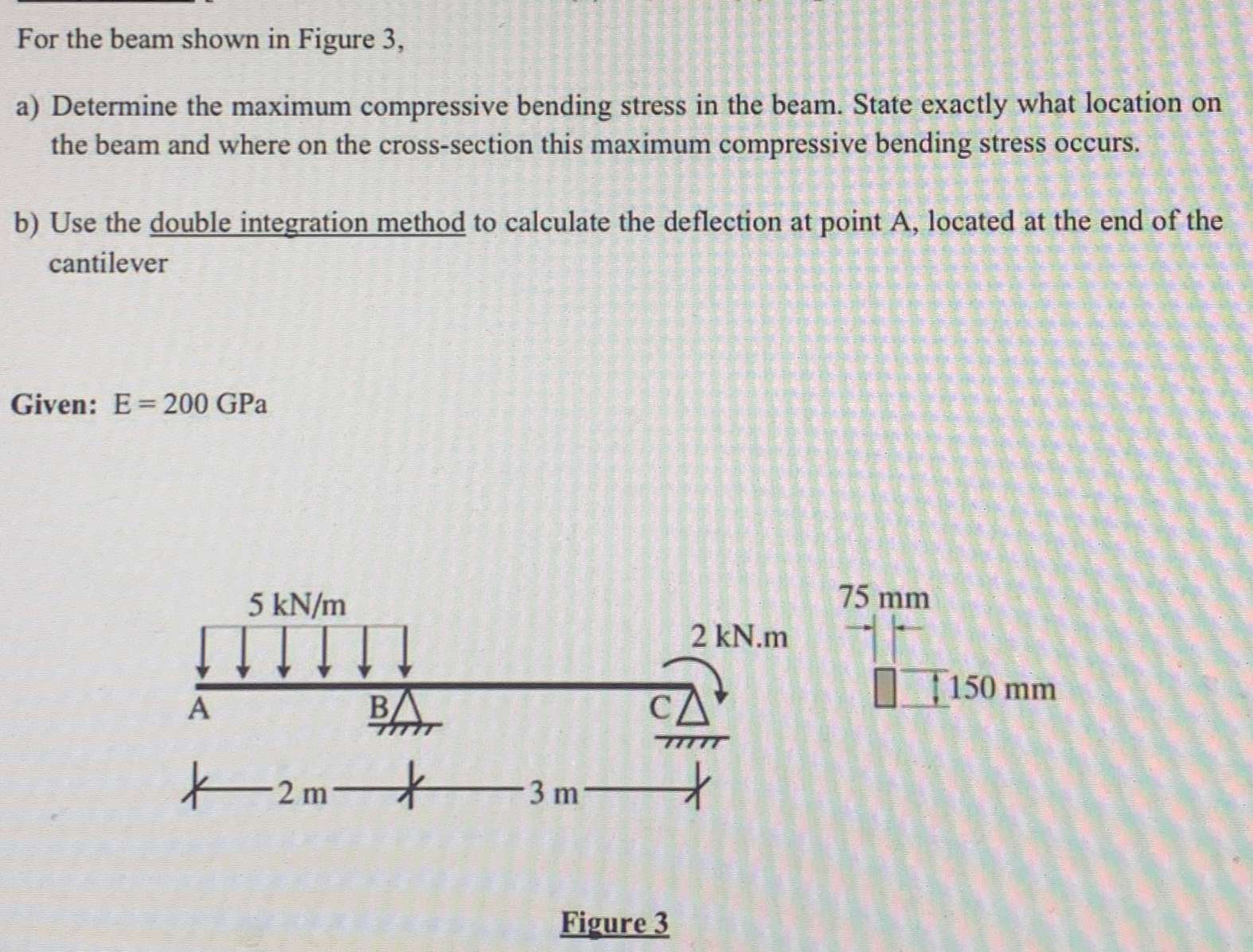

Figure 3
For the beam shown in Figure 3 , a ) Determine

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
