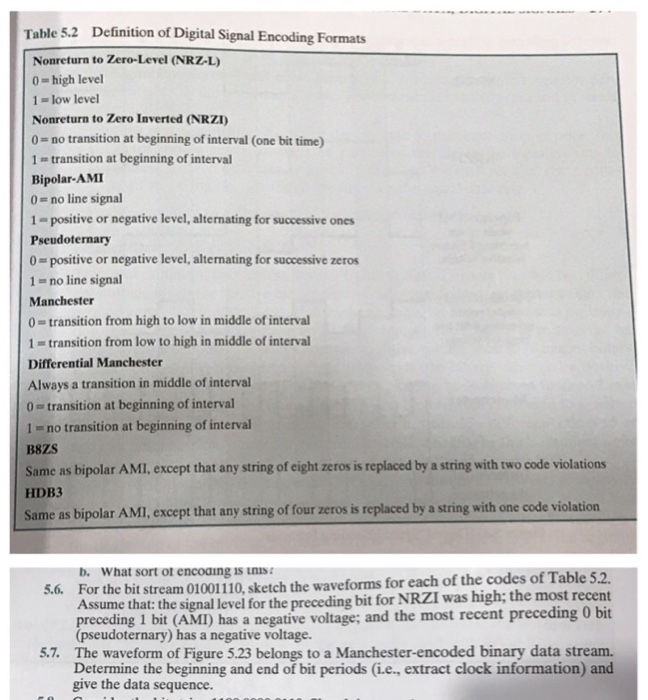

Question: For the bit stream 01001110, sketch the waveforms for each of the codes of Table 5.2. Assume that: the signal level for the preceding bit

For the bit stream 01001110, sketch the waveforms for each of the codes of Table 5.2. Assume that: the signal level for the preceding bit for NRZI was high; the most recent preceding 1 bit (AMI) has a negative voltage; and the most recent preceding 0 bit has a negative voltage. The waveform of Figure 5.23 belongs to a Manchester-encoded binary data stream. Determine the beginning and end of bit periods (i.e., extract clock information) and give the data sequence

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Databases Questions!

Just answer 6 and 8 For the bit stream 01001110, sketch the waveforms for each of the codes of Table 5.2 Assume that the signal level for the preceding bit for NRZI was high; the most recent...

2. (7 pets) The following sraph represents WAN networks. Fach node is a packet switch. 3. ( 6 pnts) Line Encoding. For the bit stream 10110011 , sketch the waveforms for each of the codes listed....

Q 5 ) In Chapter 5 , for the bit stream 0 1 0 0 1 1 1 0 , sketch the waveforms for each of the codes NRZ - L , NRZI, Bipolar - AMI, Pseudoternary, Manchester, Differential Manchester, B 8 ZS , and...

5 A ) Suppose nodes A and B are attached to opposite ends of the cable with propagation delay of 1 2 . 5 ms . Both nodes attempt to transmit at t = 0 . Frames collide and after first collision, A...

Assignment Two Q 1 . For the bit stream 1 0 0 0 1 1 1 0 1 , sketch the waveforms for each of the codes of unipolar NRZ , polar NRZ - L , polar NRZ - I, Bipolar - AMI, Pseudo - ternary, Manchester,...

I need help with with Problem 3 specifically ( NOT 2 ) . I have only included question 2 since it has the assumptions that will be used in Problem 3 . Please provide a detailed answer if possible....

For the bit stream 11101001101, sketch the waveforms for each of the following codes. Assume that for NRZ-I, the signal level for the bit preceding the first bit in the stream was high; and for...

For the bit stream 0 0 1 1 0 1 1 1 , sketch the waveforms for the following signal encoding techniques: NRZ - L , NRZI, Pseudoternary, Bipolar - AMI, Manchester and Differential Manchester. Assume...
