Question: For the catchment shown below, with dimensions (blue fill) and elevations (yellow fill) in meters, determine: 1. Qpeak at end of drains 1 and 2

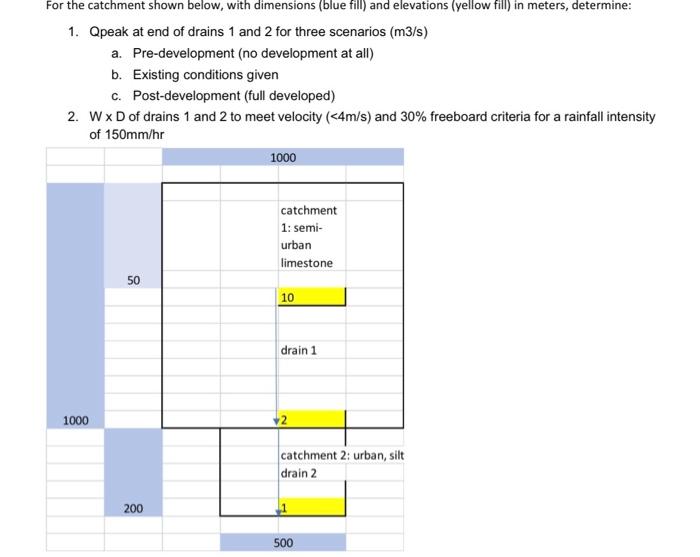

For the catchment shown below, with dimensions (blue fill) and elevations (yellow fill) in meters, determine: 1. Qpeak at end of drains 1 and 2 for three scenarios (m3/s) a. Pre-development (no development at all) b. Existing conditions given C. Post-development (full developed) 2. W x D of drains 1 and 2 to meet velocity (
