Question: For the circuit below the switch S 1 is opened at time t = 0 . Assume steady - state conditions for t 0 a

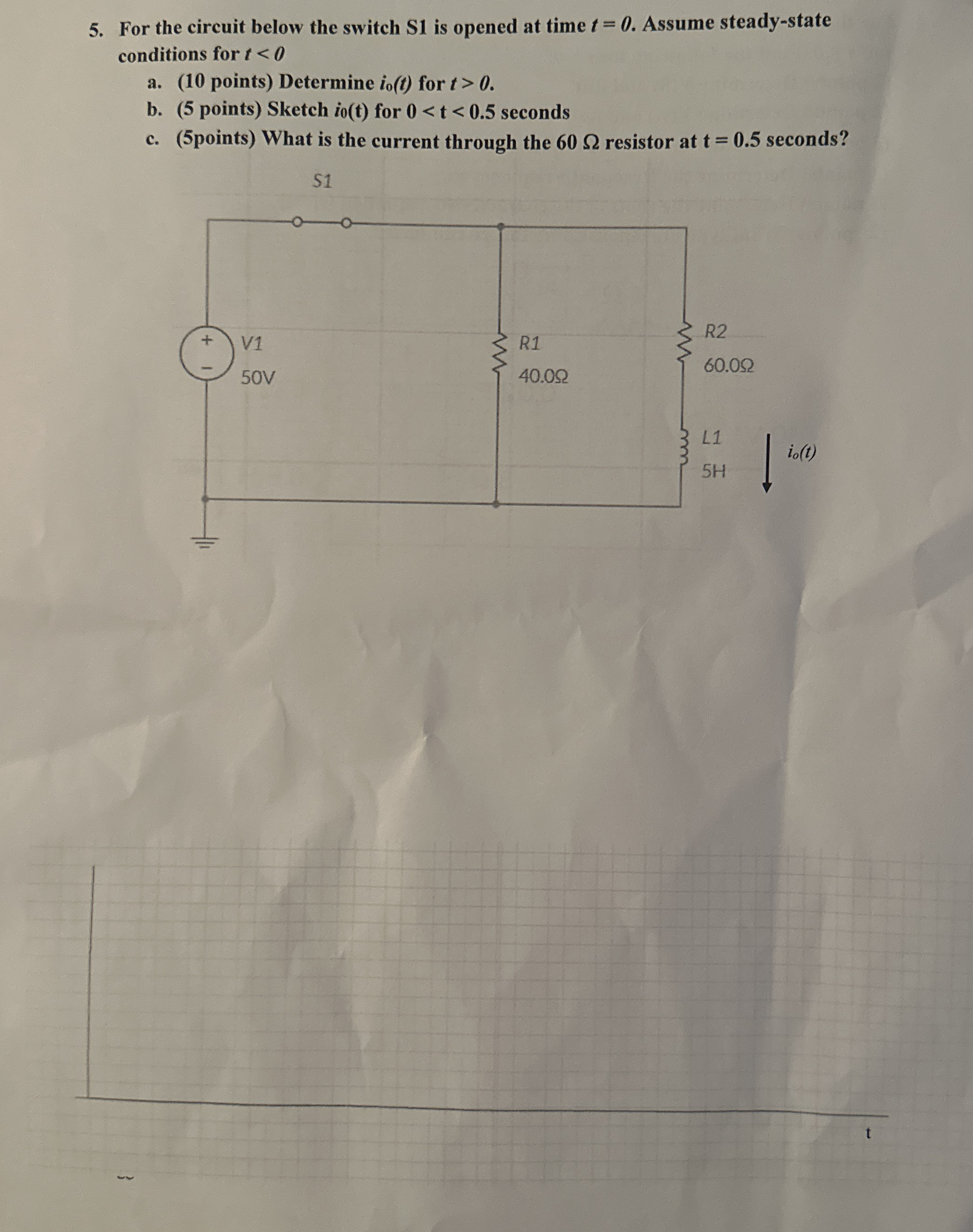

For the circuit below the switch S 1 is opened at time t=0. Assume steady-state conditions for t0
a.(10 points) Determine i0(t) for t>0.
b.(5 points) Sketch i0(t) for 60t=0.50 seconds
c.(5points) What is the current through the 60 resistor att=0.5 seconds?
