Question: For the circular piston shown below - the inside diameter of the cylinder chamber, D i = 3 . 7 5 inches; and the outside

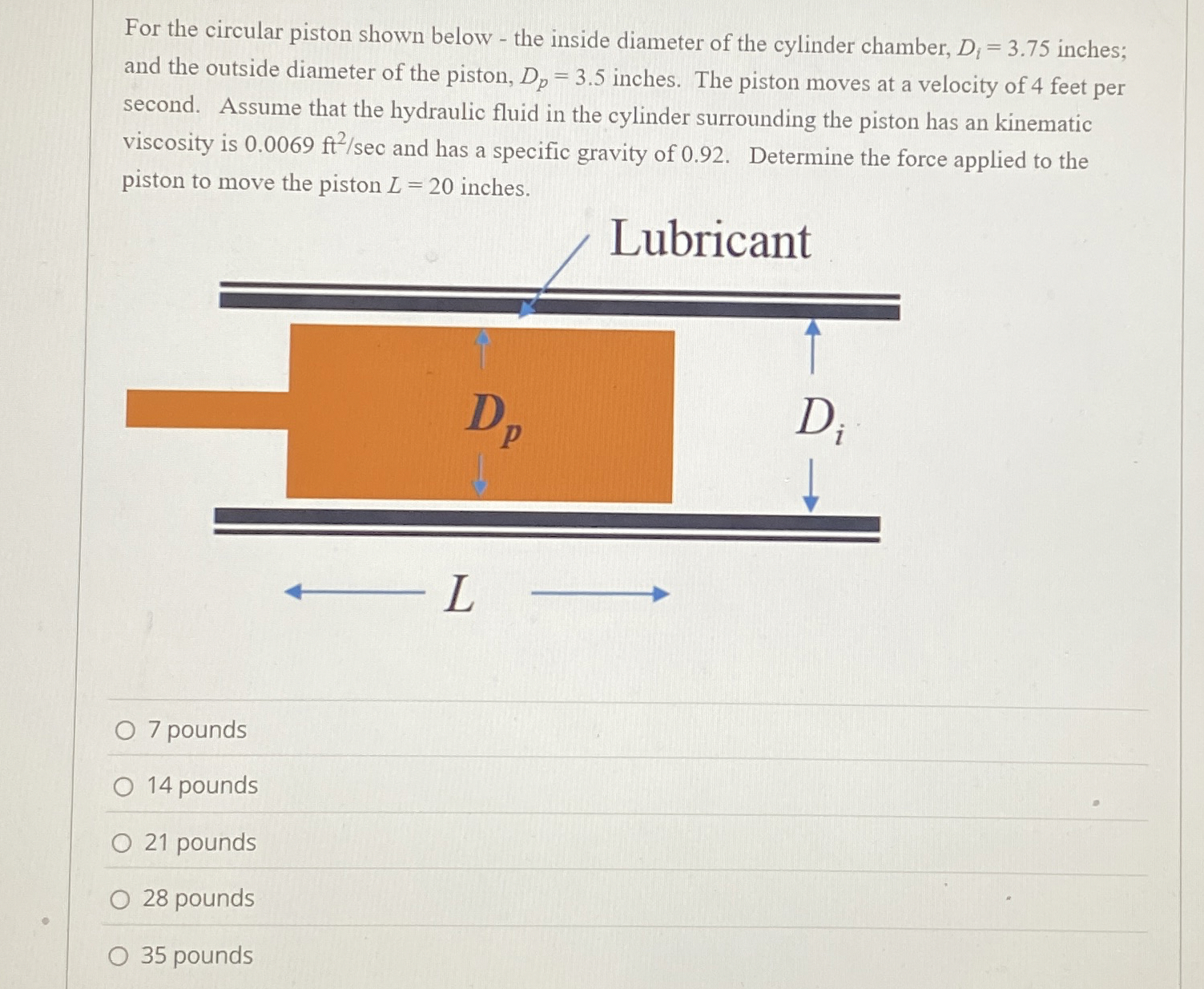

For the circular piston shown below - the inside diameter of the cylinder chamber, Di=3.75 inches; and the outside diameter of the piston, Dp=3.5 inches. The piston moves at a velocity of 4 feet per second. Assume that the hydraulic fluid in the cylinder surrounding the piston has an kinematic viscosity is 0.0069ft2sec and has a specific gravity of 0.92. Determine the force applied to the piston to move the piston L=20 inches.
7 pounds
14 pounds
21 pounds
28 pounds
35 pounds
For the circular piston shown below - the inside

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
