Question: For the composite shape shown: a ) Determine the distance x - bar to the centroid of the area. b ) Determine the moment of

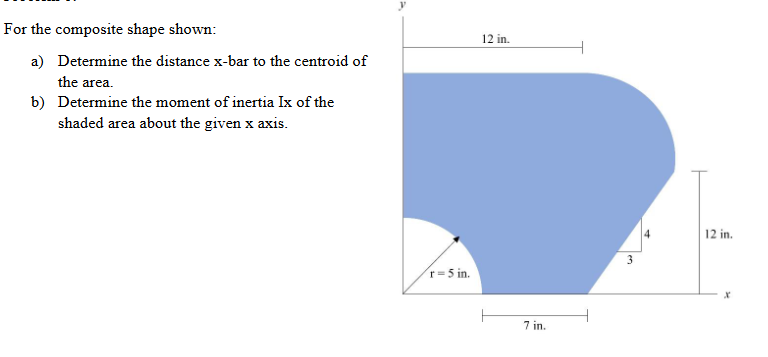

For the composite shape shown:
a) Determine the distance x-bar to the centroid of
the area.
b) Determine the moment of inertia Ix of the
shaded area about the given x axis.
For the composite shape shown: a ) Determine the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
