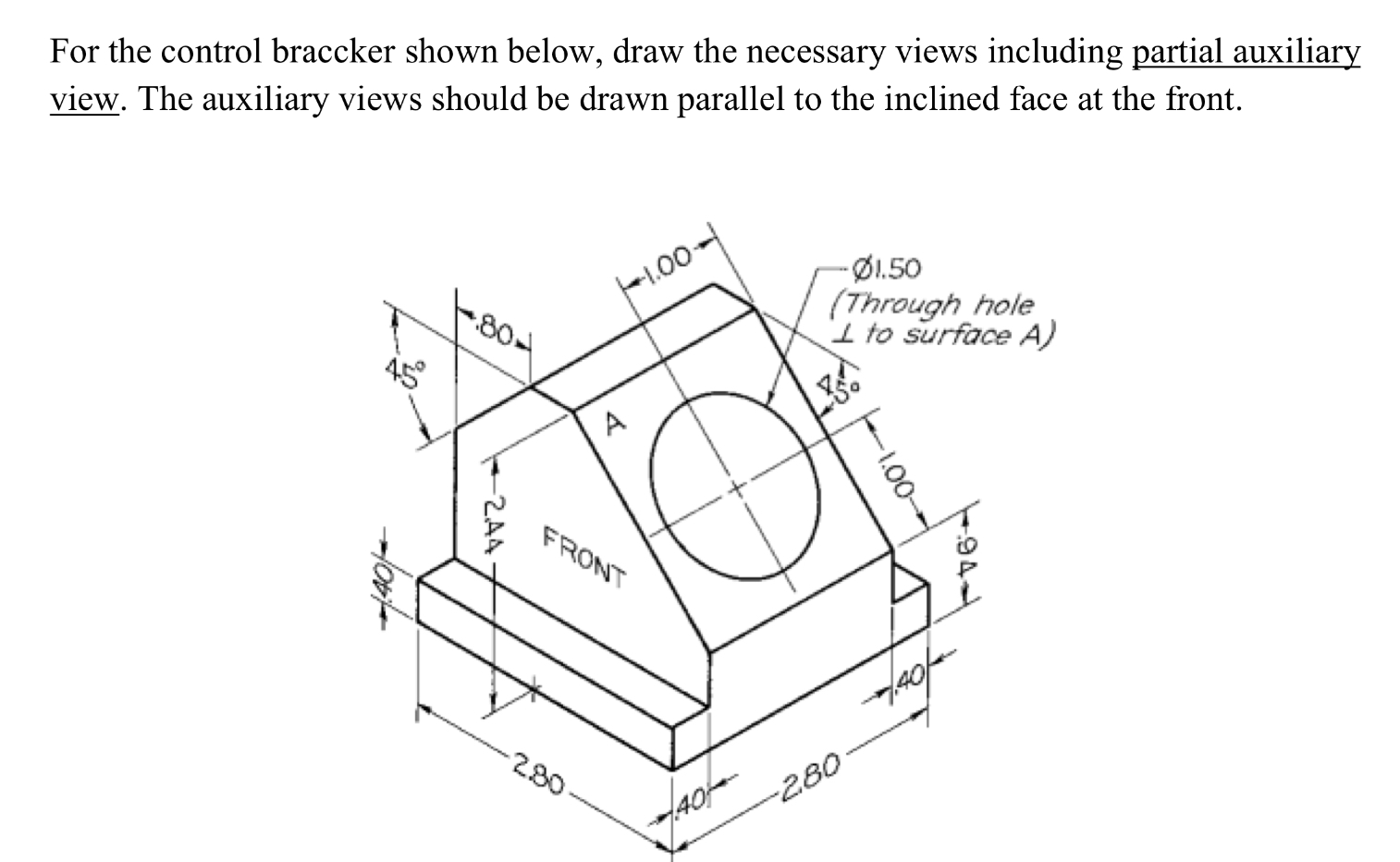

Question: For the control braccker shown below, draw the necessary views including partial auxiliary view. The auxiliary views should be drawn parallel to the inclined face

For the control braccker shown below, draw the necessary views including partial auxiliary
view. The auxiliary views should be drawn parallel to the inclined face at the front.
draw it on paper please
For the control braccker shown below, draw the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
