Question: For the cross - section provided in the figure, if bottom width ( b ) = 4 f t , side slope ( z )

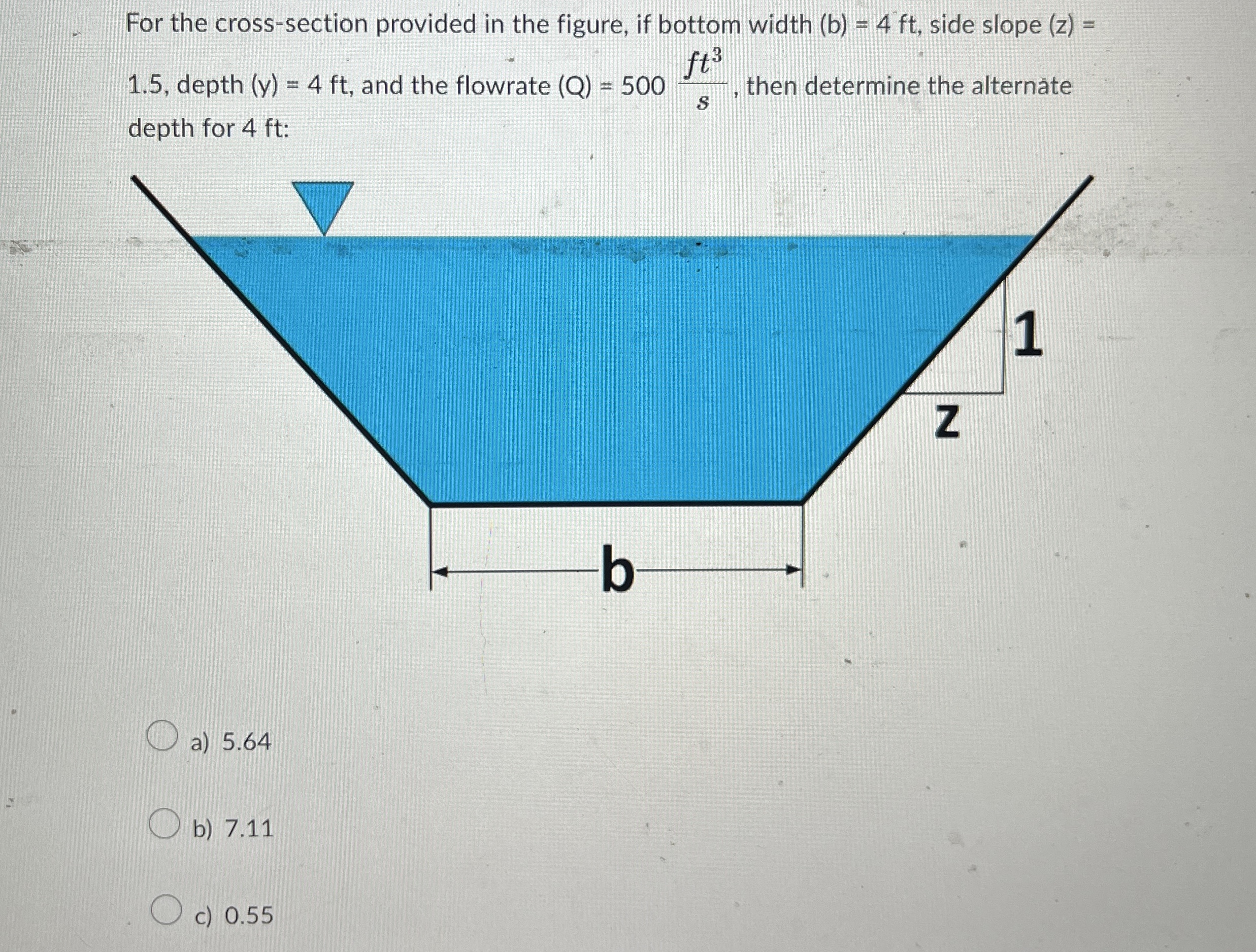

For the cross-section provided in the figure, if bottom width (b)=4ft, side slope (z)=1.5, depth (y)=4ft, and the flowrate (Q)=500ft3s, then determine the alternte depth for 4 ft :
a)5.64
b)7.11
c)0.55
For the cross - section provided in the figure,
