Question: For the cross - sectional area shown, a . Determine the moments of inertia and the product of inertia about the centroidal x and y

For the cross-sectional area shown,

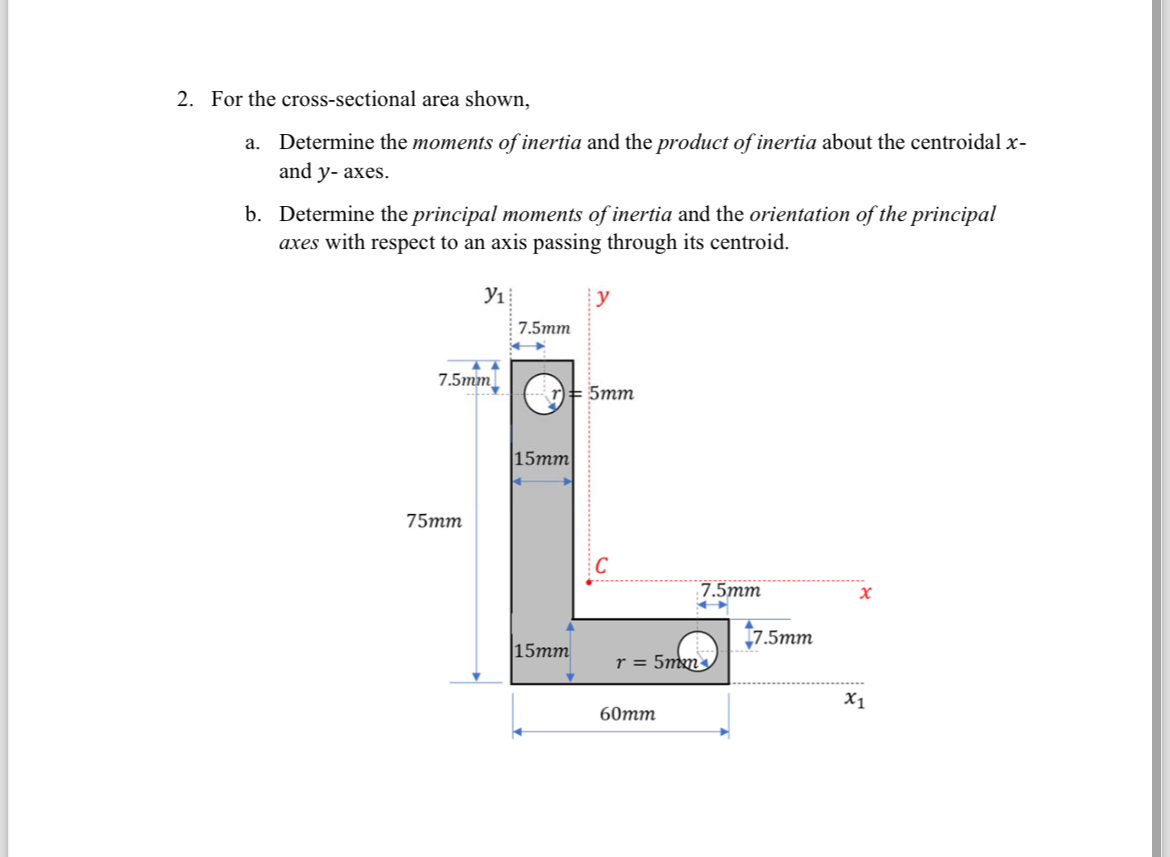

a. Determine the moments of inertia and the product of inertia about the centroidal x and y- axes.
b. Determine the principal moments of inertia and the orientation of the principal axes with respect to an axis passing through its centroid.
For the cross - sectional area shown, a .

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
