Question: For the figure shown, compute the following: a . Deflection angle at B . b . Bearing of C D . c . North azimuth

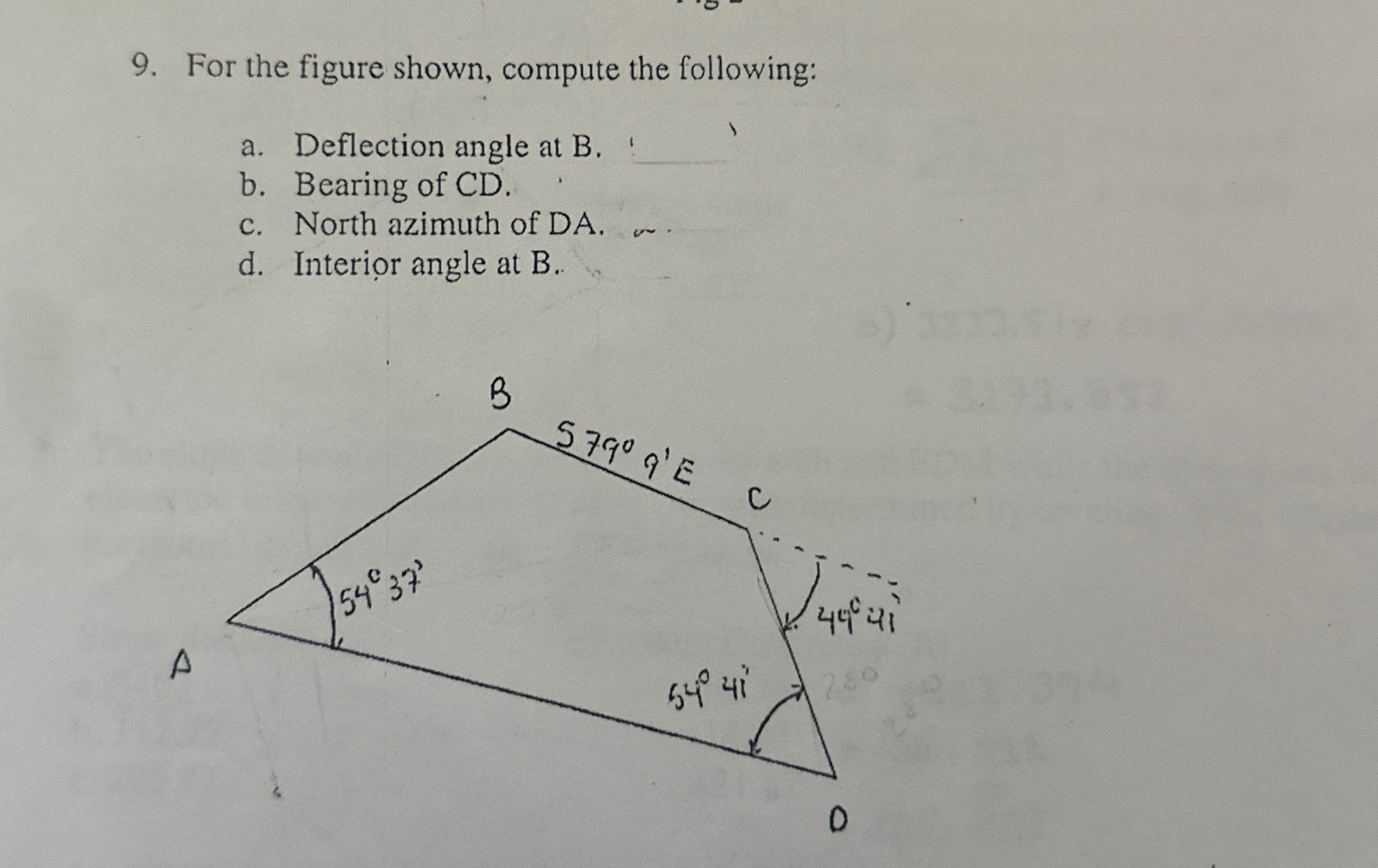

For the figure shown, compute the following:
a. Deflection angle at B.
b. Bearing of CD.
c. North azimuth of DA.
d. Interior angle at B.
For the figure shown, compute the following: a .

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!
