Question: For the floor plan shown below, a = 2 0 ft , b = 3 0 ft , and c = 4 ft . Each

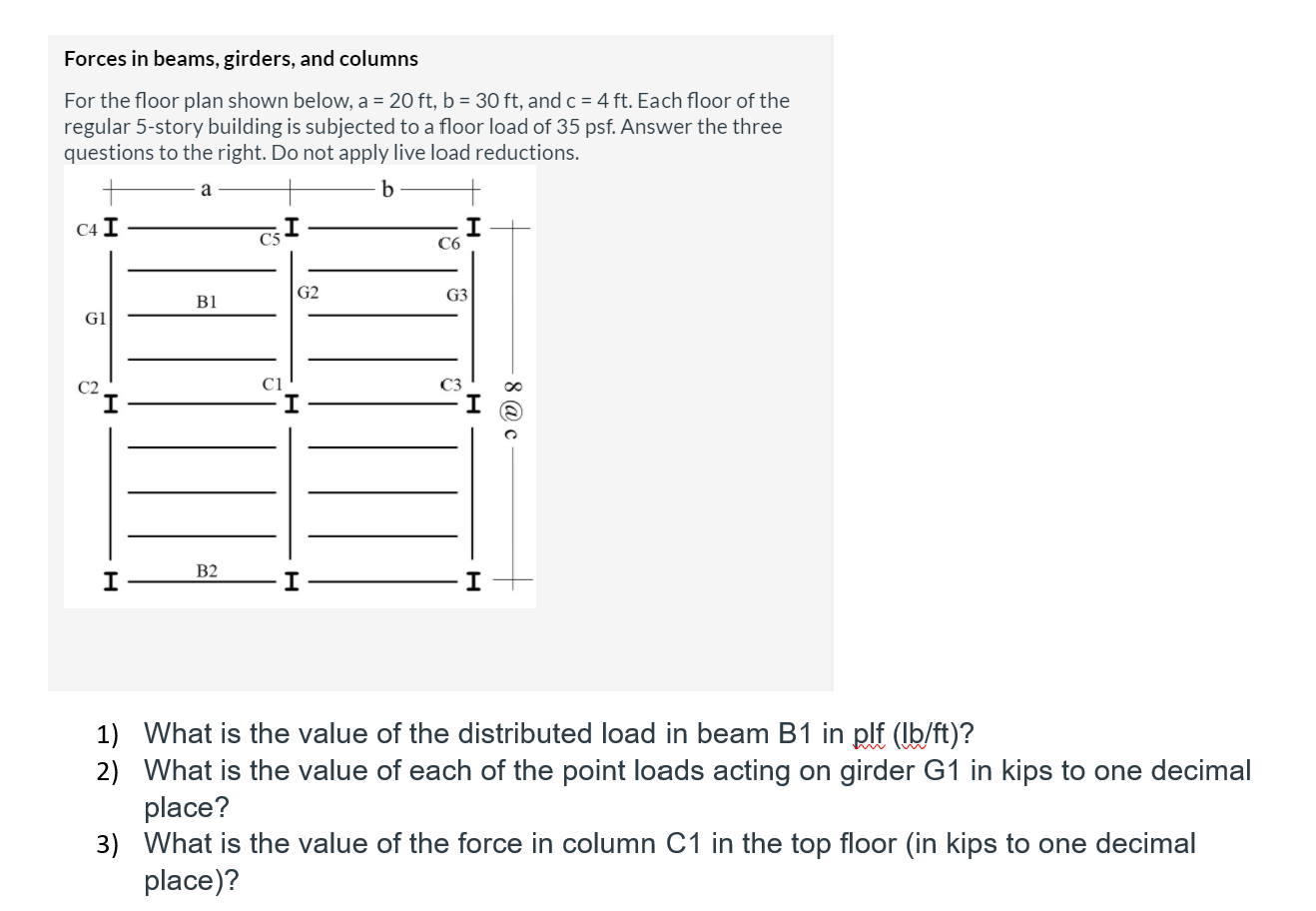

For the floor plan shown below, a =20 ft, b =30 ft, and c =4 ft. Each floor of the regular 5-story building is subjected to a floor load of 35 psf. Answer the three questions to the right. Do not apply live load reductions.
What is the value of the distributed load in beam B1 in plf (lb/ft)?
What is the value of each of the point loads acting on girder G2 in kips to one decimal place?
What is the value of the force in column C1 in the top floor (in kips to one decimal place)?
