Question: For the following Boolean function, f ( A , B , C , D ) = ? ? m ( 0 , 1 , 2

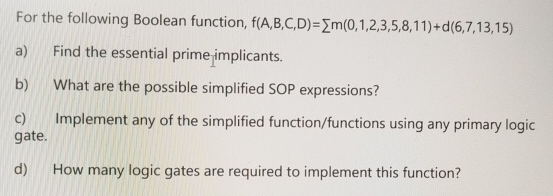

For the following Boolean function, f(A,B,C,D)=??m(0,1,2,3,5,8,11)+d(6,7,13,15)
a) Find the essential prime-implicants.
b) What are the possible simplified SOP expressions?
c) Implement any of the simplified function/functions using any primary logic gate.
d) How many logic gates are required to implement this function?
For the following Boolean function, f ( A , B , C

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
