Question: **For the following problem, assume that the durations are given in weeks and the required completion time is 21 weeks. a. Draw a network diagram

**For the following problem, assume that the

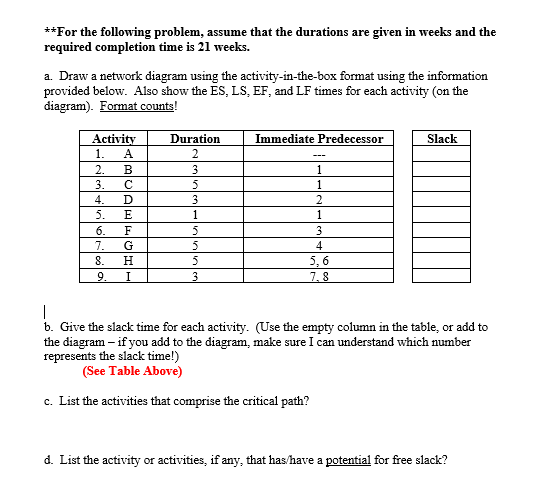

**For the following problem, assume that the durations are given in weeks and the required completion time is 21 weeks. a. Draw a network diagram using the activity-in-the-box format using the information provided below. Also show the ES, LS, EF, and LF times for each activity (on the diagram). Format counts! Immediate Predecessor Slack Activity 1. 2. B 3. 4. D 5. E 6. F 7. G 8. H 9 I Duration 2 3 5 3 1 5 5 5 3 1 1 2 1 3 4 5,6 7.8 | b. Give the slack time for each activity. (Use the empty column in the table, or add to the diagram - if you add to the diagram make sure I can understand which number represents the slack time! (See Table Above) c. List the activities that comprise the critical path? d. List the activity or activities, if any, that has have a potential for free slack

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
