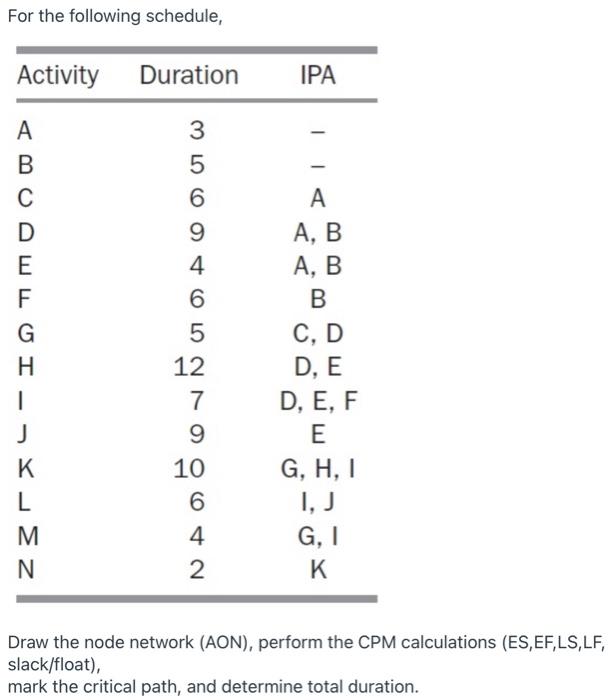

Question: For the following schedule, Activity Duration IPA A B D E F G H 3 5 6 9 4 5 12 7 9 10 6

For the following schedule, Activity Duration IPA A B D E F G H 3 5 6 9 4 5 12 7 9 10 6 4 2 A A, B A, B B C D D, E D, E, F E G, H, I GI K Draw the node network (AON), perform the CPM calculations (ES, EF, LS, LF, slack/float), mark the critical path, and determine total duration

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
