Question: For the following state table (repeat using SR, D, JK , T flip flops): Derive the state equation. Draw the circuit diagram. Draw the state

For the following state table (repeat using SR, D, JK , T flip flops): Derive the state equation. Draw the circuit diagram. Draw the state diagram.

For the following state table (repeat using SR, D, JK , T

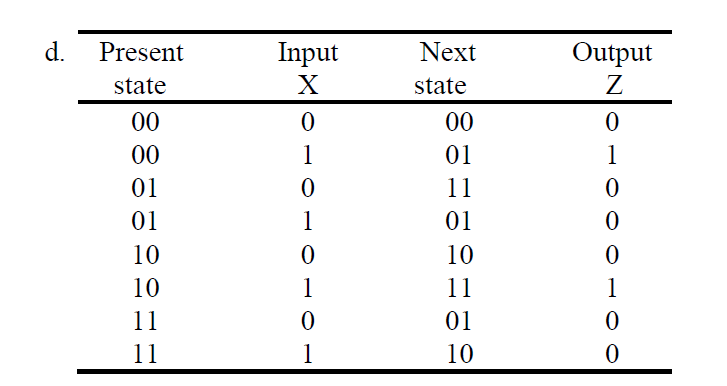

d. Present Input state X 00 00 01 01 10 10 11 11 0 1 0 1 0 1 0 1 Next state 00 01 11 01 10 11 01 10 Output Z 0 1 0 0 0 1 0 0

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Databases Questions!

Q:

Question 2 [30 points]: It is required to design a 3-bit counter using T flip flop. The output sequence is: 000, 010, 100, 110 and repeat. 1. Draw the State Diagram of the required sequential...

Q:

It is required to design a 3-bit counter using T flip flop. The output sequence is: 000, 010, 100, 110 and repeat. 1. Draw the State Diagram of the required sequential circuit. 2. Draw the State...

Q:

It is required to design a 3-bit counter using T flip flop . The output sequence is: 000, 010, 100, 110 and repeat. Draw the State Diagram of the required sequential circuit. Draw the State Table...

Q:

URGENT i have a 80 mins deadline please help i upvote Question 2 (30 points]: It is required to design a 3-bit counter using T flip flop. The output sequence is: 000, 010, 100, 110 and repeat. 1....

Q:

It is required to design a 3-bit counter using T flip flop . The output sequence is: 000, 010, 100, 110 and repeat. Draw the State Diagram of the required sequential circuit. Draw the State Table...

Q:

Please show me how to complete this whole question(with photos, not just text descriptions).Thank you. Given the following sequence, Use J-K flip-flop, Draw the state graph, state table, transition...
